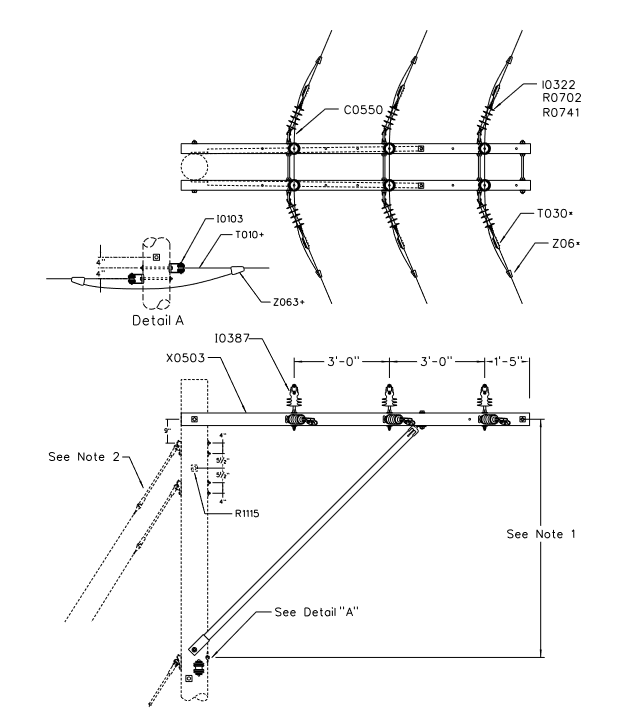

12F341 - 3Ø 11' Double Deadend Alley Arm
Revision 3
Jul 17, 2018
Note: This standard has been updated with a fiberglass crossarm but the drawing has yet to be updated.
- Minimum 7’-0” for poles up to 45’ in height. Increase spacing to 8’-0” for poles 50’ and taller.
- Engineer must specify the size & number of down guys depending on conductor design tension, line angle, available down guy lead, soil class and span length. Refer to T&D Guideline Section 4-6 and Compatible Unit Sections A and G. Down guy(s) or self-supporting poles are required for 795 kcmil AAC alley arm framing.
- Refer to T&D Guideline 4-23-1.0 for allowable construction angles.
Compatible Unit | Description | Quantity |
---|---|---|
C0550 | Tap Wire, Insul 4/0 Soft Drawn Copper | 40 |
I0103 | Insulator, #2 Single Point Secondary Rack | 2 |
I0388 | Insulator, Sgl Polymer Vise-Top Insulator - 5/8" x 8" Pin Fiberglass Crossarm Mount | 6 |
I0322 | Insulator, Sgl DE Insulator w/ 5/8” Eye Nut - One-Way DE | 6 |
R0702 | Bolt, Double Arming 5/8" x 20" | 3 |
R0741 | Washer, Square Flat 2" Sq with 11/16" Hole, Galv Steel | 12 |
R1115 | Split-Bolt, Pole Top | 1 |
T010+ | Deadend, Preform | 2 |
T030* | Clamp, Straight Line Deadend | 6 |
X0553 | Crossarm, 10' Fiberglass Alley Arm | 1 |
Z06* | Connector, Wedge | 6 |
Z063+ | Connector, Wedge | 2 |
