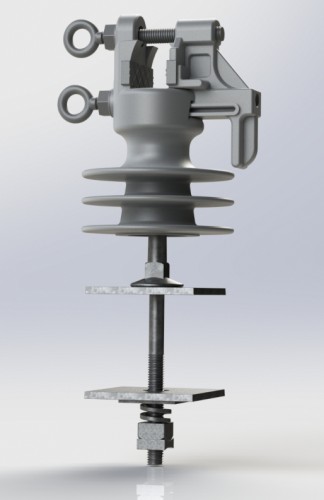

I0387-8 - 15kV Polymer Vise-Top Insulator, Fiberglass or Steel Crossarm Mounting
Revision 4
Oct 10, 2023
| Compatible Unit | L | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| I0387 | 6-1/2" | A | Pin, Insulator Steel 1” Thread, 5/8” x 6-1/2” Shank | 1 | 895039 |
| B | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | ||
| C | Insulator, 15kV Polymer Vertical Clamp-Top | 1 | 1002030 | ||
| D | Washer, Galv Sq 4” flat 15/16” Hole | 2 | 910283 | ||
| I0388 | 8" | A | Pin, Insulator Steel 1” Thread, 5/8” x 7-1/2” Shank | 1 | 895378 |
| B | Washer, Galv Double Coil Spring Lock 3/4” | 1 | 1001445 | ||
| C | Insulator, 15kV Polymer Vertical Clamp-Top | 1 | 1002030 | ||
| D | Washer, Galv Sq 4” flat 15/16” Hole | 2 | 910283 |
Notes:
- Refer to T&D Guideline 4-9-5.0 for polymer vise-top insulator application and installation guidelines.
- Refer to T&D Guideline 4-23-1.0 for allowable line angles.
