T0301-7 - Straight-Line Aluminum Deadend Clamps
Revision 5
Nov 23, 2016
| Compatible Unit | Fig | Description | Qty | MID |
|---|---|---|---|---|
| T0301 | 1 | Clamp, Straight Line #2 (#6 - 1/0 ACSR, #4 - 2/0 AAC) | 1 | 923616 |
| T0302 | 2 | Clamp, Straight Line 3/0 (1/0 - 336.4 ACSR, 2/0 - 350 AAC) | 1 | 923666 |
| T0303 | 2 | Clamp, Straight Line 336.4 kcmil (3/0 - 477 ACSR, 4/0 - 556 AAC) | 1 | 923658 |
| T0304 | 2 | Clamp, Straight Line 795 kcmil (336.4 - 1113 ACSR, 336.4 - 1200 AAC) | 1 | 923674 |

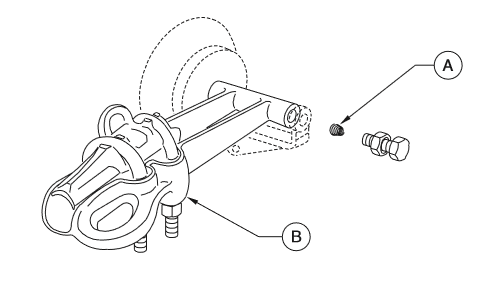

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T0307 | A | Spring, RIF Suppressor | 2 | 145608 |
| B | Clamp, Straight Line Slack Span (336.4 - 795 ACSR/AAC) | 1 | 924896 |
