R1115-6 - Pole Top Split Bolt
Revision 3
Jun 26, 2015

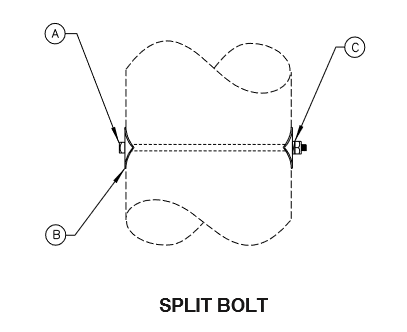

| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| R1115 | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| C | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |

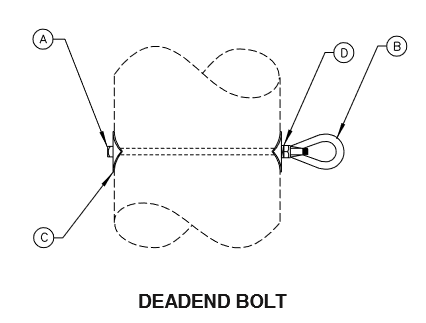

| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| R1116 | A | Bolt, Machine 3/4” x 18” | 1 | 124610 |
| B | Nut, Eye 3/4” | 1 | 893520 | |
| C | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 1 | 1001445 |
