I0101-10 - Neutral - Service Insulators
Revision 5
Aug 26, 2010
|
 |
|
|
| Compatible Unit | Fig. | Description | Qty | Mid |
|---|---|---|---|---|

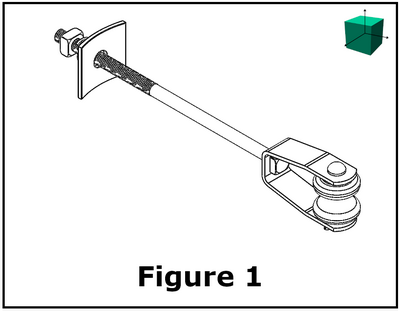

| I0101 | 1 | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| Washer, Galv. Square 3” Curved 13/16” Hole | 1 | 910019 | ||
| Insulator, Spool, w/ Rack #1 | 1 | 925688 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | ||

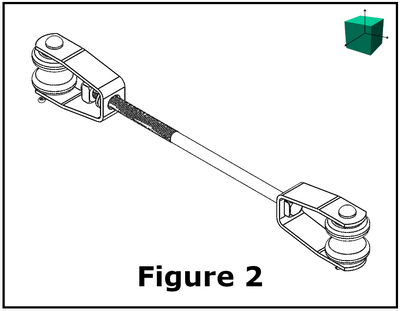

| I0102 | 2 | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| Insulator, Spool, w/ Rack #1 | 1 | 925688 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | ||

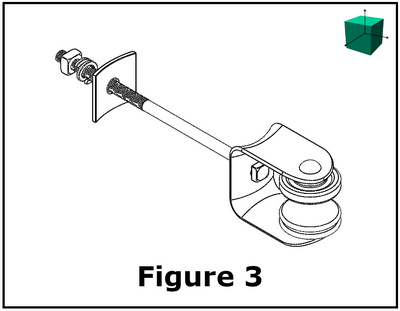

| I0103 | 3 | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| Washer, Galv. Square 3” Curved 13/16” Hole | 1 | 910019 | ||
| Insulator, Spool w/ Rack #2 | 1 | 925696 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | ||

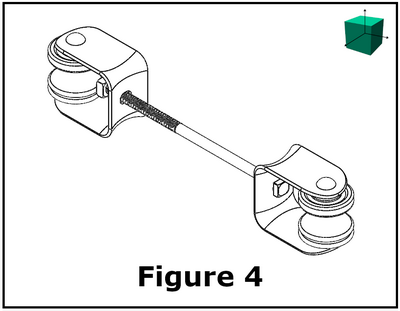

| I0104 | 4 | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| Insulator, Spool w/ Rack #2 | 1 | 925696 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Fig. | Description | Qty | Mid |
|---|---|---|---|---|

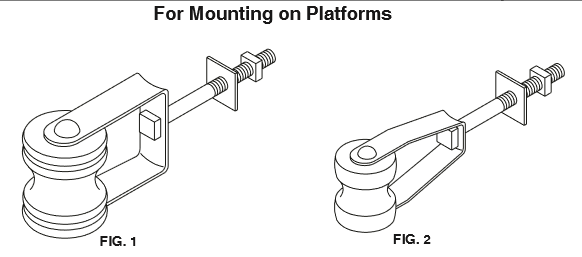

| I0105 | 1 | Bolt, Machine 5/8” x 1-1/2” | 1 | 102343 |
| Washer, Galv. Square 2” Flat 11/16” Hole | 1 | 910267 | ||
| Insulator, Spool, w/ Rack #2 | 1 | 925696 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | ||
| I0106 | 2 | Bolt, Machine 5/8” x 1-1/2” | 1 | 102343 |
| Washer, Galv. Square 2” Flat 11/16” Hole | 1 | 910267 | ||
| Insulator, Spool w/ Rack #1 | 1 | 925688 | ||
| Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Fig. | Description | Qty | Mid |
|---|---|---|---|---|

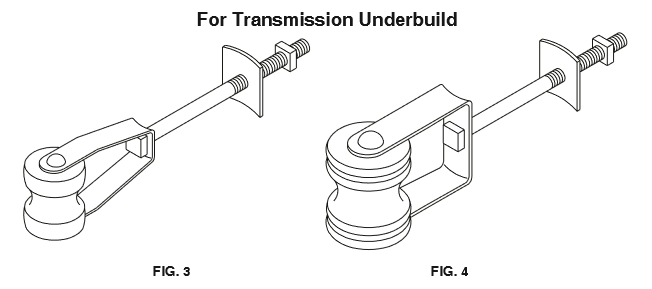

| I0107 | 3 | Bolt, Machine 5/8” x 14” | 124206 | |
| Washer, Galv. Square 3” Curved 13/16” Hole | 910019 | |||
| Insulator, Spool, w/ Rack #1 | 925688 | |||
| Washer, Galv Double Coil Spring Lock 5/8” | 1001443 | |||
| I0108 | 4 | Bolt, Machine 5/8” x 14” | 124206 | |
| Insulator, Spool, w/ Rack #1 | 925688 | |||
| Washer, Galv Double Coil Spring Lock 5/8” | 1001443 | |||
| Washer, Galv Double Coil Spring Lock 5/8” | 1001443 |
| Compatible Unit | Fig. | Description | Qty | Mid |
|---|---|---|---|---|

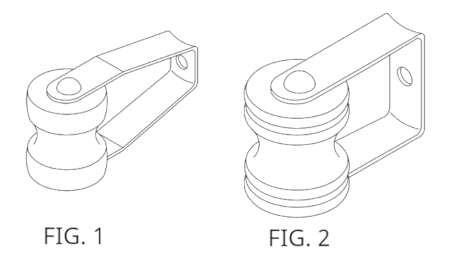

| I0109 | 1 | Insulator, Spool w/ Rack #1 | 1 | 925688 |
| I0110 | 2 | Insulator, Spool, w/ Rack #2 | 1 | 925696 |
