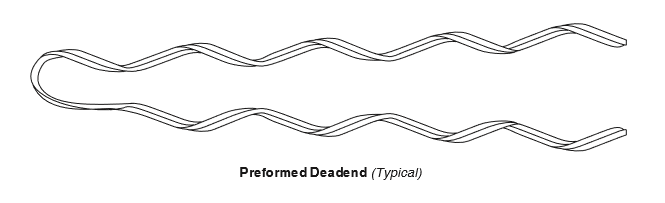

T0100-8 - Preformed Deadends
Revision 4
Oct 24, 2014
| Compatible Unit | Conductor Size | Application | Qty | MID |
|---|---|---|---|---|
| T0100 | #6 AL & ACSR | Service Cable Deadend | 1 | 928997 |
| T0100A | #4 AL & ACSR | Line Conductor Deadend | 1 | 928913 |
| T0101 | #2 AL & ACSR | Line Conductor Deadend | 1 | 928921 |
| T0102 | #2 AL & ACSR | Service Cable Deadend | 1 | 929002 |
| T0103 | 1/0 AL & ACSR | Line Conductor Deadend | 1 | 928939 |
| T0107 | 3/0 AL & ACSR | Line Conductor Deadend | 1 | 928989 |
| T0108 | 4/0 AL & ACSR | Service Cable Deadend | 1 | 929044 |
Notes:
- The preformed deadends used by the District are designed for installation on stranded bare conductor.
- Preformed deadends are designed for use only on smoothly contoured fittings which have adequate groove widths and diameters. They are not designed for deadending on eye-bolts.
- Preformed service cable deadends are designed for use on such fittings as porcelain spool insulators and wire-holders. Preformed line conductor deadends are designed for use on such fittings as porcelain spool insulators, strain insulators and thimble clevises. Contact Standards if there is any question about deadending on a particular fitting.
- Installing connectors over the legs of preformed deadends is not recommended.
- The loops of preformed service cable deadends should not be criss-crossed when two or more are applied to the same spool. Use of a service drop take-off insulator bracket (District MID 935512) can help avoid this situation.
- Preformed deadends should not be re-used after initial installation.
