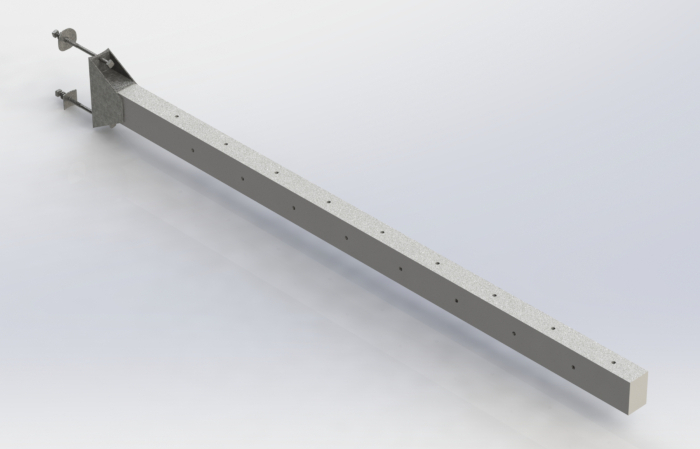

X0553 - Crossarm, 10' Fiberglass Alley Arm
Revision 1
Feb 9, 2015
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0553 | A | Bolt, Machine 3/4” x 14" | 2 | 124595 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| C | Washer, Cast Sq 4" Curved 15/16" Hole | 1 | 910035 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| E | Crossarm, Fiberglass, 10’ Alley Arm, Self-Supporting | 1 | 1003556 |
Notes:
- This crossarm can be used in lieu of double wood 10' & 11' alley arms (Compatible Unit X0502 & Compatible Unit X0503) where a brace-less alley arm is preferred.

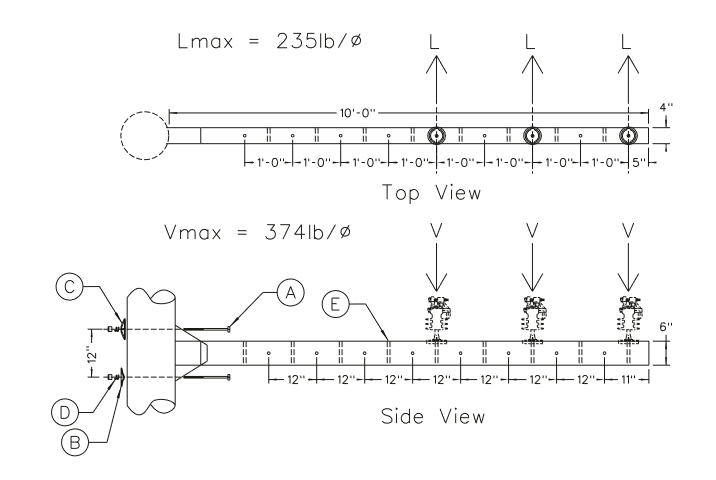

- Important! — do not exceed the maximum vertical and longitudinal working loads shown above.
