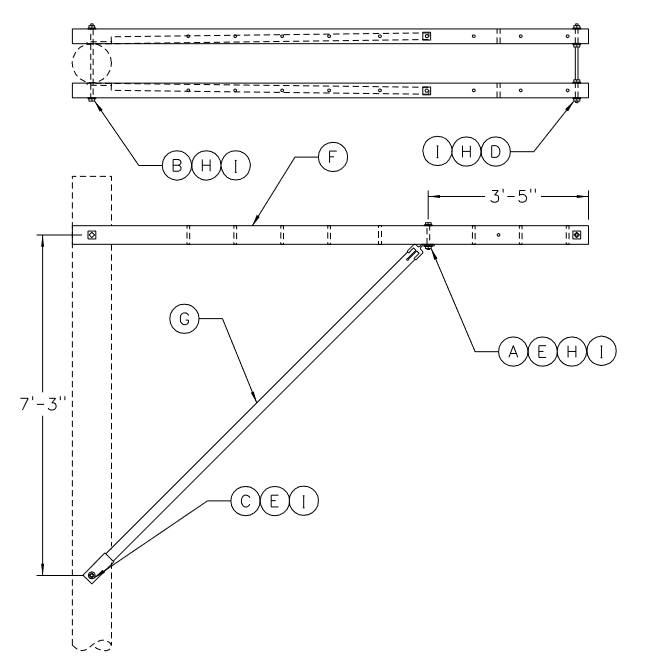

X0503 - Double 11' 8 Steel Pin Alley Arm *Maintenance Only*
Revision 5
Jan 22, 2021
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0503 | A | Bolt, Machine 5/8" x 8" | 2 | 124157 |
| B | Bolt, Machine 5/8" x 20" | 1 | 124248 | |
| C | Bolt, DA 5/8" x 18" | 1 | 125957 | |
| D | Bolt, DA 5/8" x 20" | 1 | 125965 | |
| E | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 4 | 196479 | |
| F | Crossarm, Wood 8-Pin 11' | 2 | 873027 | |
| G | Brace, Alley Arm 10' | 2 | 876625 | |
| H | Washer, Galv Sq 2" Flat 11/16" Hole | 8 | 910267 | |
| I | Washer, Galv Double Coil Spring Lock 5/8" | 7 | 1001443 |
