T1601-4 - 15kV Junction Boxes
Revision 9
Mar 22, 2024

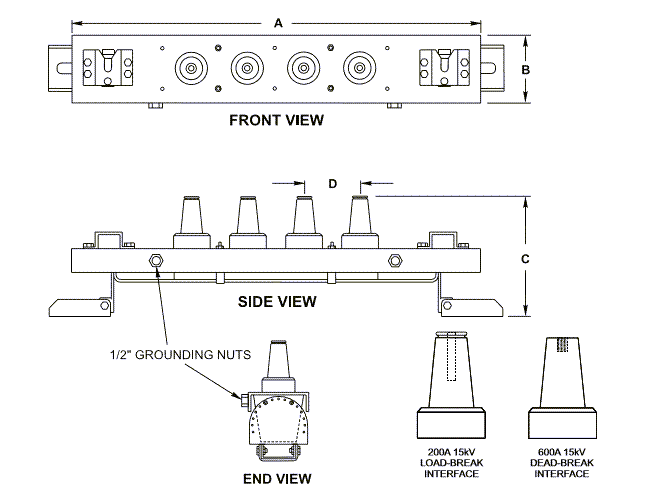

| Compatible Unit | Description | Typical Dimensions | Qty | MID | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| T1601 | J-Box, 2-Way 200A 15kV Load-Break | 15" | 4.2" | 9.5" | 3.25" | 1 | 762387 |
| T1602 | J-Box, 3-Way 200A 15kV Load-Break | 21" | 4.2" | 9.5" | 3.25" | 1 | 762551 |
| T1603 | J-Box, 4-Way 200A 15kV Load-Break | 25" | 4.2" | 9.5" | 3.25" | 1 | 762402 |
| T1603A | J-Box, 5-Way 200A 15kV Load-Break | 31.5" | 4.2" | 11.25" | 4" | 1 | 762436 |
| T1604 | J-Box, 4-Way 600A 15kV Dead-Break | 27" | 4.2" | 10.1" | 4" | 1 | 762452 |
Notes:
- 2-way and 3-way J-boxes are for maintenance use only, do not use for new construction.
- Due their comparatively high cost and large size, especially their extension from the vault wall, 5-way J-boxes (T1603A) are intended to be used only for modification of existing 4-way installations where one additional tap is needed and minimum vault size requirements can be met, as indicated below. For totally new construction, if one 4-way junction does not provide a sufficient number of taps, it is recommended that an additional 4-way junction vault be installed and that a primary jumper be installed between the two vaults.
- For subsurface installations of 200A J-boxes, specify the following concrete vault Compatible Units:
J-Box Vault CU Description 1Ø 4-way J-box V0203 4'-8" x 4'-8" x 3'-6" w/ 6"H diamond plate cover 1Ø 5-way J-box V0203 4'-8" x 4'-8" x 3'-6" w/ 6"H diamond plate cover 2Ø 4-way J-box V0203 4'-8" x 4'-8" x 3'-6" w/ 6"H diamond plate cover 2Ø 5-way J-box V0203 4'-8" x 4'-8" x 3'-6" w/ 6"H diamond plate cover
(5-way J-boxes must be mounted on opposite walls.)3Ø 4-way J-box V0207 with standard cover (MID 1001681)
4'-8" x 7'-0" x 4'-0" w/ 12"H double diamond plate cover -
doors open away from each other on opposite ends of vault
(Mount two 4-ways on one 7' wall and one 4-way on the opposite 7' wall or mount one 4-way on a side wall and one 4-way on each end wall.)3Ø 5-way J-box V0207 with standard cover (MID 1001681)
4'-8" x 7'-0" x 4'-0" w/ 12"H double diamond plate cover -
doors open away from each other on opposite ends of vault
(Mount two 5-ways on one 7' wall and one 5-way on the opposite 7' wall or mount one 5-way on a side wall and one 5-way on each end wall.)3Ø 5-way J-box V0207 with alternate cover (MID 1002460)
4'-8" x 7'-0" x 4'-0" w/ 12"H double diamond plate cover - doors open side-by-side on one of the 7'-0" sides of the vault (Mount one 5-way on the same side of the vault as the covers are hinged and mount one 5-way on each end wall.) - Do not install 4-way or 5-way J-boxes in the following vaults:
• 4'-0" x 6'-0" x 3'-6" combination transformer/J-box vault (V0304)
• 4'-8" x 4'-8" x 3'6" vault containing two 4-way J-boxes (V0203) - For pad-mounted installations of 200A J-boxes, specify the following cabinet and vault Compatible Units:
J-Box Cabinet CU Vault CU Description 1Ø 4-way J-box T1570 V0300A
V0300Concrete 42" x 42" x 30" Deep with 11" x 25" access or Fiberglass 43" x 38" x 36" Deep with 11" x 25" access 1Ø 5-way J-box T1571 V0300A Concrete 42" x 42" x 30" Deep with 11" x 25" access 3Ø 4-way J-box T1572 V0300 Concrete 4'-8" x 4'-8" x 3'-6" with 6'-0" Sq Cover with 15" x 40" access - Consult with Standards for guidance in the use of 600A J-boxes (T1604), which are for special applications only. Normally, 3Ø 600A J-box installations should be made in 6'-8" x 12'-8" x 8'-0" deep vaults with a triple diamond plate cover (V0210). For taking a 200A tap off of a 600A bushing use bushing adapter T1609.
