V0207 - Vaults, 4'-8" X 7' X 5'
Revision 6
Mar 31, 2026
| C.U. | Description | Qty | MID |
|---|---|---|---|

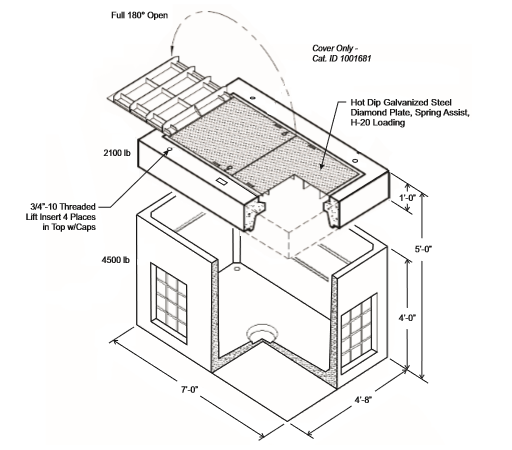

| V0207 | Vault, Concrete 4'8"W x 7'L x 4'H & Cover, Vault 4'8"W x 7'L x 12"H w/ (2) 3'W x 3'L Diamond Plates | 1 | 766446 |
Note:
- For applications requiring a level-adjustable vault cover with a slip resistant steel hatch (for example a lid in a sidewalk), specify RimRiser cover MID 5006320. This lid comes equipped with adjustable 5/8" screws giving up to 3-3/4" elevation adjustment in each corner. Manufacturer recommendation is to leave a minimum gap of 0.5" between top and base for grouting after adjustment. Use fast-set grout MID 784224 to fill gaps..

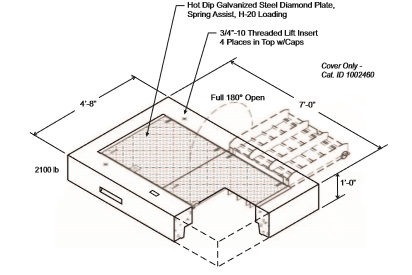

- For locations where the vault cover hatch opening alignment shown above will not work satisfactorily due to the presence of obstacles, roadways, etc., a vault cover with hatches aligned to open side-by-side, as shown below, is available as an alternative. Specify it by MID 1002460. The below configuration is not currently available with RimRiser adjustment inserts.
