V0210 - Pulling & Splicing Vault, 6'-8" X 12'-8" X 8'
Revision 7
Aug 5, 2014

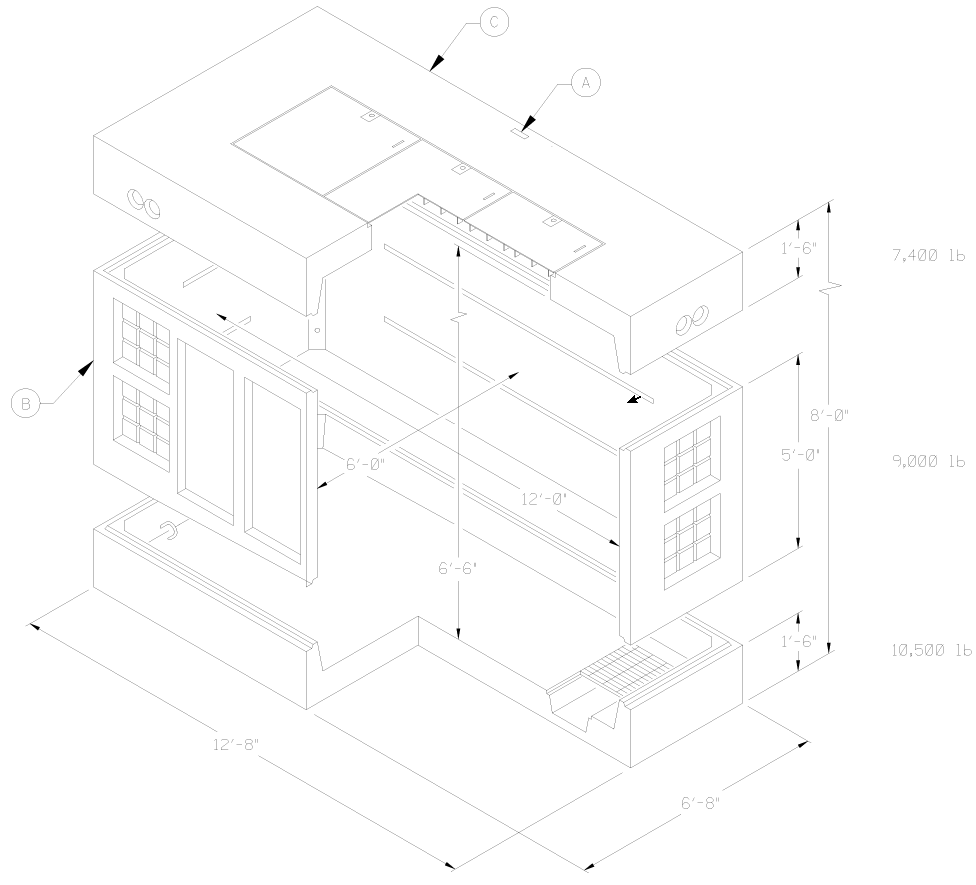

| C.U. | Item | Description | Qty | MID |
|---|---|---|---|---|
| V0210 | A | Tag, Vault, Cu 1"W x 3.5"L | 1 | 385303 |
| B | Vault, 2-Piece Concrete Bottom: 6'8"W x 12'8"L x 1'6"H Middle: 6'8"W x 12'8"L x 5'H |
1 | 1003601 | |
| C | Vault, Cover 6'8"W x 12'8"L x 18"H w/ (3) 3'W x 3'L Diamond Plates | 1 | 1002247 |
Notes:
- The vault dimensions shown are for Utility Vault (a division of Oldcastle Precast), historically the District's primary supplier for this vault. Equivalent vaults supplied by other manufacturers typically have slightly different dimensions. Determine which manufacturer a vault was purchased from, and check its dimensions for situations where dimensions are critical, such as in paved areas where the vault cover must be flush with the grade.
- For Utility Vault replacement cover w/ 3-Diamond Plate doors, see MID 1002247.
- For Utility Vault replacement cover w/ 3-SlipNOT® doors, see MID 1003024.
