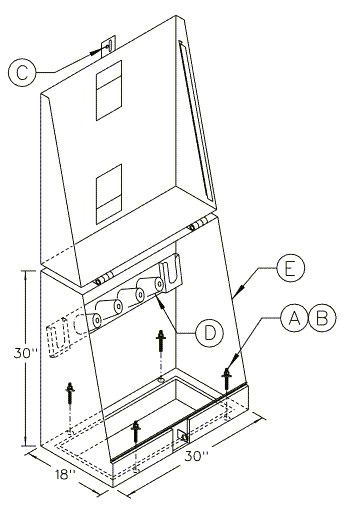

T1570 - 1Ø 200A 15kV 4-Way J-Box Cabinet
Revision 4
Dec 28, 2023
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1570 | A | Bolt, Kwik 3/8" x 2" | 6 | 112045 |
| B | Washer, Galv Rd 1-3/8" Flat 9/16" Hole | 6 | 196461 | |
| C | Padlock, Disposable | 1 | 412651 | |
| E | Cabinet, J-Box 1Ø 200A 15kV 4-Way | 1 | 801200 |
Notes:
- The 4-way J-box is installed in the J-box cabinet in the District’s Transformer Shop before the cabinet is placed into inventory.
- The District installs 1Ø J-box cabinets on open bottom mini-vaults. Refer to Compatible Unit V0300 for the fiberglass mini-vault and V0300A for the concrete mini-vault used with 1Ø J-box cabinets. The choice of mini-vault type is generally based on the type of mini-vault being specified for the pad-mounted transformers in a given development.
Fiberglass and concrete mini-vaults should not be mixed in the same development.
