V0300-1A - Open Bottom Vaults

C.U.	Item	Description	Qty	MID

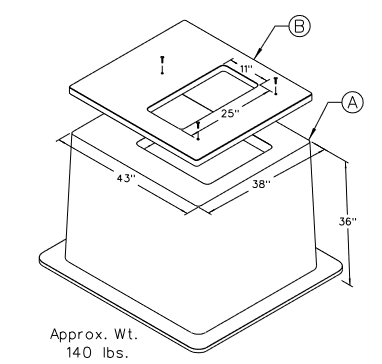

V0300	A	Vault, Open Bottom Fiberglass	1	766230
	B	Cover, J-Box Fiberglass	1	1001644

Note:

• Penta-head hold-down bolts are included with lid. If replacements are needed, use MID 112128 (3/8"-16 x 1-1/2" stainless steel penta-head bolts).

C.U.	Description	Qty	MID

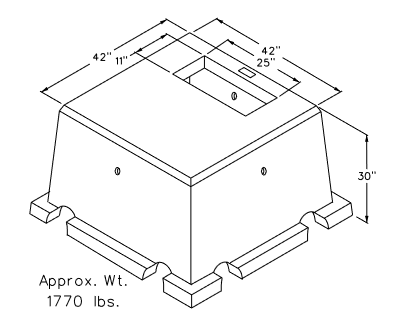

V0300A	Vault, Open Bottom Concrete 1Ø J-Box Cabinet	1	766214

C.U.	Description	Qty	MID

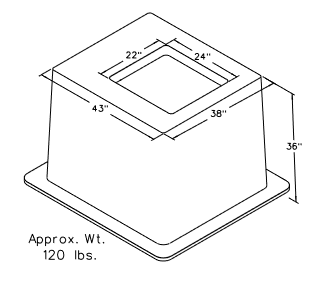

V0301	Vault, Open Bottom Fiberglass	1	766230

C.U.	Description	Qty	MID
V0301A	Vault, Open Bottom Concrete 1Ø Padmt Xfmr	1	766206

Notes:

1. Open bottom mini-vaults are used for 1Ø padmount transformer installations, 100 kVA and smaller.
2. Fiberglass mini-vaults (V0300 & V0301) may hold a maximum of 8 secondary and primary conduits.
   Concrete mini-vaults (V0300A & V0301A) may hold a maximum of 4 secondary and primary conduits.
   In addition, both types of vaults may have a single flex conduit feeding a single secondary handhole directly behind the vault. Refer to T&D Guideline 4-23-5.0 for more information.
3. Fiberglass mini-vaults include two hold-down cleats for securing the transformer to the vault.
   Additional cleats may be ordered as follows:


   MID	Length
   1000688	6-1/4"
   1000689	3"
