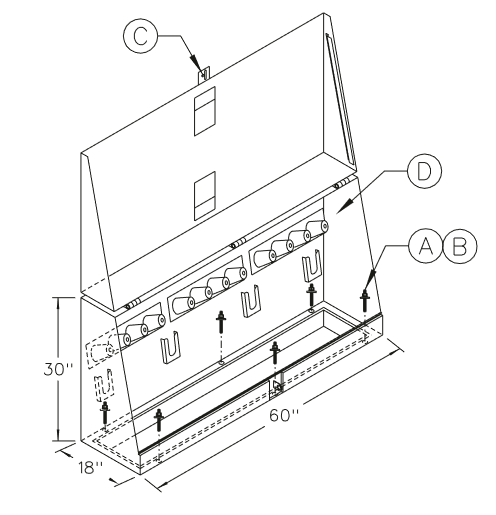

T1572 - 3Ø 200A 15kV 4-Way J-Box Cabinet

Revision 3
Dec 28, 2023

Compatible Unit Item Description Qty MID
T1572 A Bolt, Kwik 3/8" x 2" 6 112045
  B Washer, Galv Rd 1-3/8" Flat 9/16" Hole 6 196461
  C Padlock, Disposable 1 412651
  D Cabinet, J-Box 3Ø 200A 15kV 4-Way 1 801226

Notes:

  1. Three 4-position junctions are pre-installed in each 3Ø J-box cabinet.
  2. Refer to Compatible Unit V0303 for 3Ø J-box cabinet vault, except replace cover with MID 1001876, which has a 15" x 40" opening.
  3. The J-box cabinet must be grounded using #2 bare SD solid Cu ground wire connected to a minimum 144 in2 ground plate installed per Compatible Unit N0301 or a 5/8" x 8 ft ground rod installed per Compatible Unit N0303. The ground wire is connected to the cabinet using two equipment grounding clamps (Compatible Unit Z0304).
