V0303 - 3Ø Transformer Vault, 75kVA - 500kVA
Revision 2
Jun 17, 2010
| C.U. | Description | Qty | MID |
|---|---|---|---|

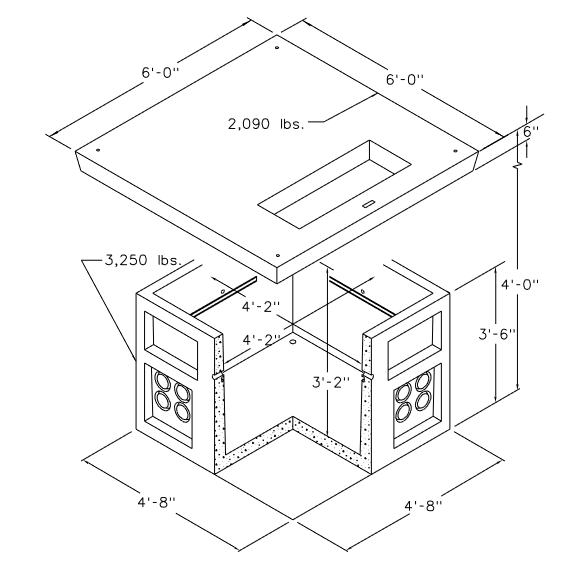

| V0303 | Vault, Concrete 4'8"W x 4'8"L x 3'6"H & Cover, Vault 6'W x 6'L x 6"H w/ 18"L x 40"W Access Hole
(Lid Only - MID 781444) |
1 | 766313 |
Note:
- The above vault is used for 3Ø padmount transformer installations, 75 kVA to 500 kVA
