N0301-2 - Ground Plate Installation for Underground Distribution Systems
Revision 6
Aug 28, 2013
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|

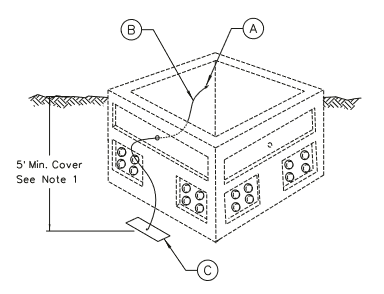

| N0301 | A | Connector, C-Crimp Cu #2 to #2 | 1 | 211524 |
| B | Wire, #2 Cu Bare SD Sol | 20' | 1000027 | |
| C | Plate, Cu Ground 144 in2 | 1 | 1001807 |
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|

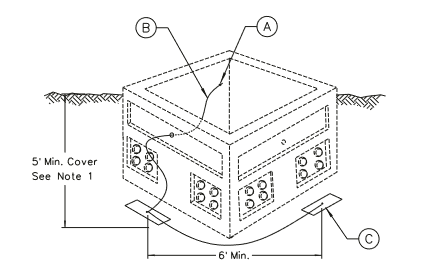

| N0302 | A | Connector, C-Crimp Cu #2 to #2 | 1 | 211524 |
| B | Wire, #2 Cu Bare SD Sol | 30' | 1000027 | |
| C | Plate, Cu Ground 144 in2 | 2 | 1001807 |
Notes:
- A ground plate must be installed a minimum of 5' deep to be considered a made electrode suitable for grounding equipment such as transformers and j-boxes. Cover the ground plate with tamped select backfill. If vault is to be backfilled with gravel or sand, bury the ground plate below the backfill or install 5/8" x 8' ground rod(s) per Compatible Unit N0303 (1-ground rod) or N0304 (2-ground rods).
- Ground plates are preferred for grounding installed during vault installation. Use ground rods for grounding vaults already set and backfilled, refer to Compatible Unit page N0303 - N0304.
- Two grounds are required for j-box vaults and end of lateral vaults; refer to Compatible Units N0302 (2-ground plates) and N0304 (2-ground rods).
