N0303-4 - Ground Rod Installation for Underground Distribution Systems
Revision 1
Aug 28, 2013

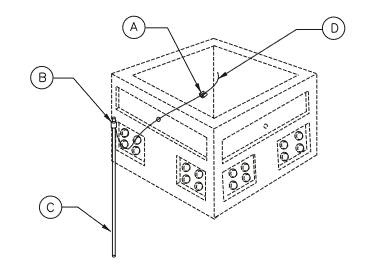

| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0303 | A | Connector, C-Crimp Cu #2-#2 | 1 | 211524 |
| B | Clamp, Ground Rod 5/8” | 1 | 880709 | |
| C | Rod, Ground 5/8” x 8’ | 1 | 902206 | |
| D | Wire, #2 Cu Bare SD Sol | 15' | 100027 |
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0304 | A | Connector, C-Crimp Cu #2-#2 | 1 | 211524 |
| B | Clamp, Ground Rod 5/8” | 2 | 880709 | |
| C | Rod, Ground 5/8” x 8’ | 2 | 902206 | |
| D | Wire, #2 Cu Bare SD Sol | 25' | 100027 |
Notes:
- Ground plates are preferred for grounding during vault installation, refer to Compatible Unit page N0301 - N0302.
Use ground rods for grounding vaults already set and backfilled. - Two grounds are required for j-box vaults and end of lateral vaults; refer to Compatible Units N0302 (2-ground plates) and N0304 (2-ground rods).
