T1571 - 1Ø 200A 15kV 5-Way J-Box Cabinet

Revision 1
Dec 28, 2023

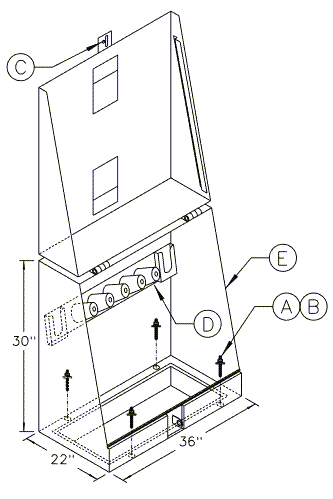

Compatible Unit Item Description Qty MID
T1571 A Bolt, Kwik 3/8" x 2" 6 112045
  B Washer, Galv Rd 1-3/8" Flat 9/16" Hole 6 196461
  C Padlock, Disposable 1 412651
  E Cabinet, J-Box 1Ø 200A 15kV 5-Way 1 1001939

Notes:

  1. Due to their comparatively high cost, 5-way J-box cabinets are intended be used only for modification of existing 4-way J-box cabinet installations where one additional tap is needed.
  2. The 5-way J-box is installed in the J-box cabinet in the District's Transformer Shop before the cabinet is placed into inventory.
  3. The expectation is that the 5-way J-box cabinet would normally be installed on an existing open bottom concrete vault (V0300A) as a replacement for a 4-way J-box cabinet (T1570).
  4. The J-box cabinet must be grounded using #2 bare SD solid Cu ground wire connected to a minimum 144 in2 ground plate installed per Compatible Unit N0301 or a 5/8" x 8 ft ground rod installed per Compatible Unit N0303. The ground wire is connected to the cabinet using two equipment grounding clamps (Compatible Unit Z0304).
