12F303 - 3Ø 10' Single Arm Tangent

Revision 8
Jul 13, 2023

12F303 Drawing

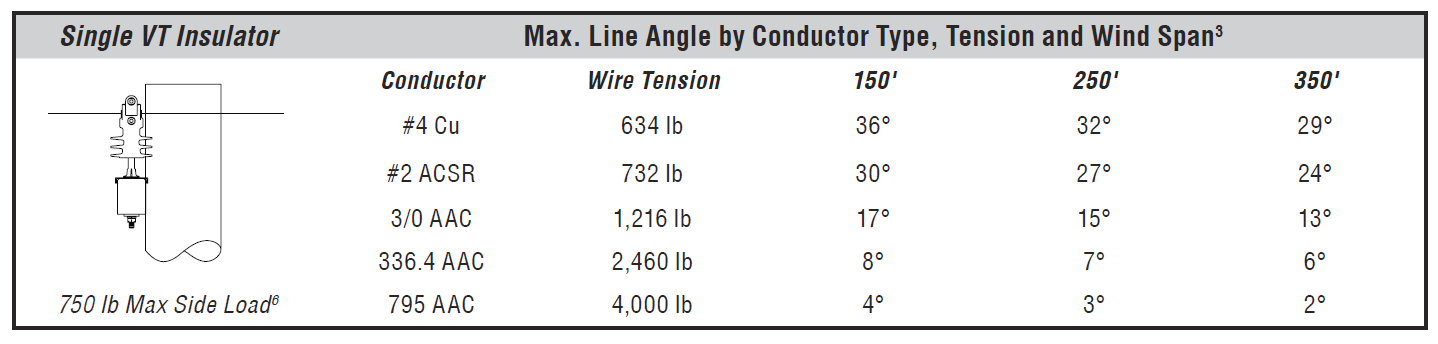

Notes:

  1. Call for Compatible Units G0113 and A0101 when turning angles between 1° and 9° (assuming 336.4 kcmil AAC primary and 3/0 AAC neutral conductors).
  2. Minimum 7'-0" for poles up to 45' in height. increase spacing to 8'-0" for poles 50' and taller.



Material List
Compatible Unit Description Quantity
I0103 Insulator, #2 Single Point Secondary Rack 1
I0387 Insulator, Sgl Polymer Vise-Top Insulator 3
I0390 Insulator, Sgl Pole Top Pin w/ Polymer Vise-Top Insulator 1
X0301 Crossarm, 10' Tangent Fiberglass 1
