A0101-204 - Anchors
Revision 4
Feb 3, 2022

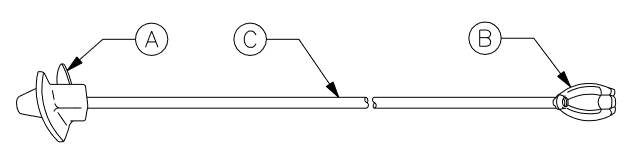

| Compatible Unit | Item | Description | Quantity | Material ID |
|---|---|---|---|---|
| A0101 | A | Anchor, Single Helix 8" | 1 | 871500 |
| B | Nut, Anchor Triple Eye 1" | 1 | 894065 | |
| C | Rod, Anchor Power Installed 3/4" x 7' | 1 | 902462 |

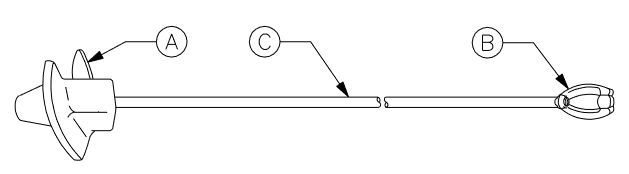

| Compatible Unit | Item | Description | Quantity | Material ID |
|---|---|---|---|---|
| A0102 | A | Anchor, Single Helix 12" | 1 | 871518 |
| B | Nut, Anchor Triple Eye 1" | 1 | 894065 | |
| C | Rod, Anchor Power Installed 1" x 7' | 1 | 902511 |

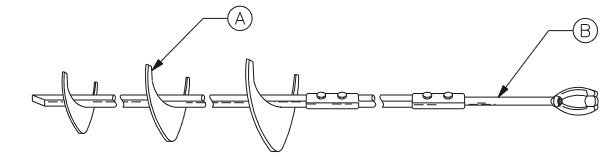

| Compatible Unit | Item | Description | Quantity | Material ID |
|---|---|---|---|---|
| A0103 | A | Anchor, Triple Helix | 1 | 871469 |
| B | Rod, Anchor Square Power Installed 7’ | 1 | 902496 | |
| The following additional material is available but is not included in the Compatible Units: | ||||
| Rod, Anchor Square Power Installed 3-1/2’ | 902488 | |||

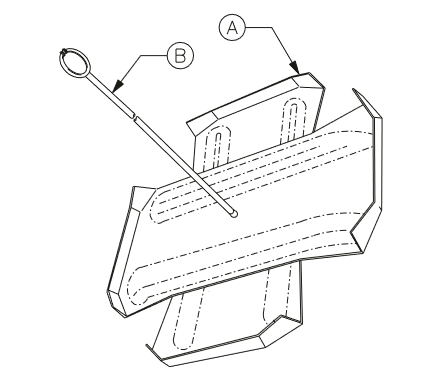

| Compatible Unit | Item | Description | Quantity | Material ID |
|---|---|---|---|---|
| A0203 | A | Anchor, Cross Plate 24” | 1 | 871964 |
| B | Rod, Anchor w/ Triple Eye 1” X 10’ | 1 | 902313 | |
| A0204 | A | Anchor, Cross Plate 16” | 1 | 5004300 |
| B | Rod, Anchor w/ Triple Eye 3/4” X 8’ | 1 | 5004310 |
