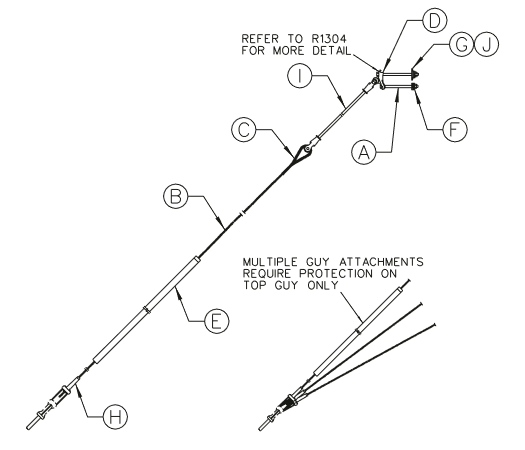

G0113-4 - 3/8" & 1/2" Down Guy w/ Fiberglass Strain Insulator, 20' Lead on 45' Pole, 2 Bolt Mounting Hardware

Notes:

These units include mounting hardware. For attaching distribution down guys to existing guy plates or crossarms with built-in guy attachments, refer to Compatible Units G0115 - G0116.
All guys installed on poles with energized attachments shall include a guy strain insulator. Refer to T&D Guideline 4-6-1.5 for more information on use and placement of guy strain insulators.
Use Compatible Unit G0113 for guy tensions up to 8,299 lb. Use Compatible Unit G0114 for guy tensions between 8,300 lb and 14,497 lb.
When a Y-clevis end is desired, add one "figure 8" clevis link and Y-clevis (see items K and L).

Compatible Unit	Guy Size	Item	Description	Qty	MID
G0113	3/8"	A	Bolt, Machine 3/4” x 14”	2	124595
		B	Wire, Guy EHS 3/8” Galv Stl 7-Str	56'	858623
		C	Deadend, Guy Preformed 3/8”	1	880452
		D	Hook, Combination Guy	1	884579
		E	Marker, Guy Yellow Plastic 8’	1	900052
		F	Washer, Galv Sq 3” Curved 13/16” Hole	1	910019
		G	Washer, Cast Sq 4” Curved 15/16” Hole	1	910035
		H	Deadend, Guy Automatic 3/8”	1	923418
		I	Insulator, Strain FG 78”	1	939209
		J	Washer, Galv Double Coil Spring Lock 3/4”	2	1001445
		K	Link Clevis, Double Eye (Figure 8) 30,000 UTS	1	927155⁴
		L	Clevis, Y-Clevis 30,000 lb UTS	1	926222⁴

G0114	1/2"	A	Bolt, Machine 3/4” x 14”	2	124595
		B	Wire, Guy EHS 1/2” Galv Stl 7-Str	56'	858748
		C	Deadend, Guy Preformed 1/2”	1	880460
		D	Hook, Combination Guy	1	884579
		E	Marker, Guy Yellow Plastic 8’	1	900052
		F	Washer, Galv Sq 3” Curved 13/16” Hole	1	910019
		G	Washer, Cast Sq 4” Curved 15/16” Hole	1	910035
		H	Deadend, Guy Automatic 1/2”	1	923426
		I	Insulator, Strain FG 78”	1	939209
		J	Washer, Galv Double Coil Spring Lock 3/4”	2	1001445
		K	Link Clevis, Double Eye (Figure 8) 30,000 UTS	1	927155⁴
		L	Clevis, Y-Clevis 30,000 lb UTS	1	926222⁴
