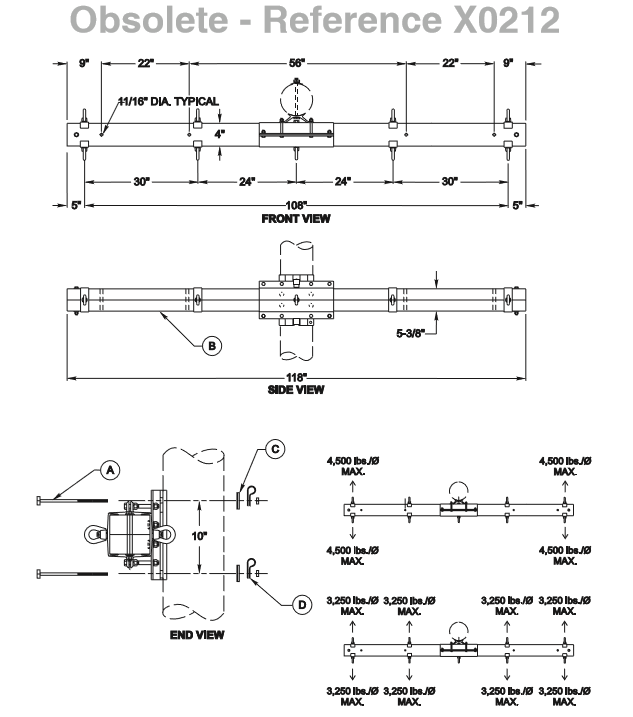

X0202 - 10' Medium Duty Unitized Deadend Crossarm
Revision 6
Mar 14, 2012
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0202 | A | Bolt, Machine 3/4" x 14" | 2 | 124595 |
| B | Crossarm, 9.8' 5-Pos Heavy Duty DE | 1 | 872607 | |
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| D | Washer, Galv Spring Clip 13/16" Hole | 2 | 910340 |
Note:
- This crossarm is intended for 3 conductor 795 AAC distribution deadends (see Assembly Unit 12F365) and for deadending and double deadending four or five 336.4 kcmil AAC and smaller conductors (see Assembly Units 12F312, 12F318, 12F319 and 12F320).
