T1012-3 - Outdoor URD Cable Terminations
Revision 3
Nov 16, 2016

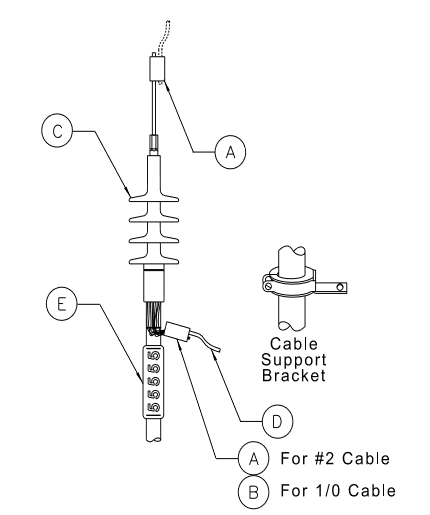

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1012 | A | Connector, Squeezon Cu (#151) #2 to #4 | 2 | 211516 |
| C | Termination, Cable Outdoor #2 Al 15kV | 1 | 777055 | |
| D | Wire, #2 Cu Bare SD Sol | 10' | 1000027 | |
| E | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ | |
| T1013 | A | Connector, Squeezon Cu (#151) #2 to #4 | 1 | 211516 |
| B | Connector, Squeezon Cu (#152) #2 to #2 | 1 | 211524 | |
| C | Termination, Cable Outdoor 1/0 Al 15kV | 1 | 777112 | |
| D | Wire, #2 Cu Bare SD Sol | 10' | 1000027 | |
| E | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ |
Notes:
- These terminations are suitable for jacketed and bare concentric cables.
- Refer to Compatible Units T1004 -T1006 for outdoor power cable terminations.
- Refer to Compatible Units T1203 -T1204 for live-front switch cabinet URD cable terminations.
- Refer to Compatible Units T1205, T1207 for live-front switch cabinet power cable terminations.
