T1207 - 1000kcm 15kV Switch Cabinet Termination
Revision 6
Mar 13, 2012
Notes:
- Maintain a minimum 1/2" clearance between the cable termination skirts and the fiberglass barriers that function as the switch bay walls.
- Maintain a minimum 1" clearance between the skirts of cable terminations in adjacent switch bays.
- Refer to Compatible Unit T1006 for 1000 kcmil 15kV cable riser pole terminations

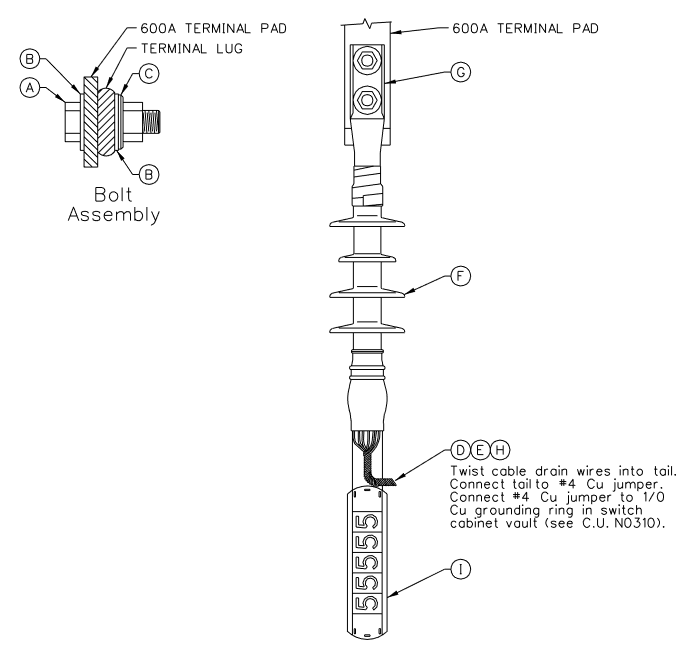

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1207 | A | Bolt, SS 1/2" x 1-3/4" Hex Hd w/ Bronze Hex Nut | 2 | 103359 |
| B | Washer, SS Rd 1-3/8" Flat 9/16" Hole | 41 | 191627 | |
| C | Washer, SS Belleville 9/16" Hole | 21 | 191635 | |
| D | Connector, Cu C-Crimpit #4 Sol - #4 Str to #6 Sol - #4 Str | 11 | 211508 | |
| E | Connector, Cu C-Crimpit 1/0 Sol - 2/0 Str to #8 Sol - #2 Str | 11 | 1001655 | |
| F | Termination, Cable 1000 kcmil Al 15kV Jktd Drain Wire Shld | 1 | 777089 | |
| G | Terminal, Compression UG 1000 kcmil Str Al | 1 | 786452 | |
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |
| I | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ |
