T1203-4 - #2 & 1/0 15kV Switch Cabinet Cable Terminations
Revision 4
Mar 13, 2012
Notes:
- Bend the soft-drawn copper stem of the stem connector, as necessary, to achieve proper alignment of the cable termination to:
- Maintain a minimum 1/2" clearance between the cable termination skirts and the fiberglass barriers that function as the fuse bay walls.
- Maintain a minimum 1" clearance between the skirts of cable terminations in adjacent fuse bays.
- Ensure that a fuse holder hanging in the open position clears the cable termination mounted below it.
- Refer to Compatible Units T1012-T1013 for #2 and 1/0 15kV cable riser pole terminations.

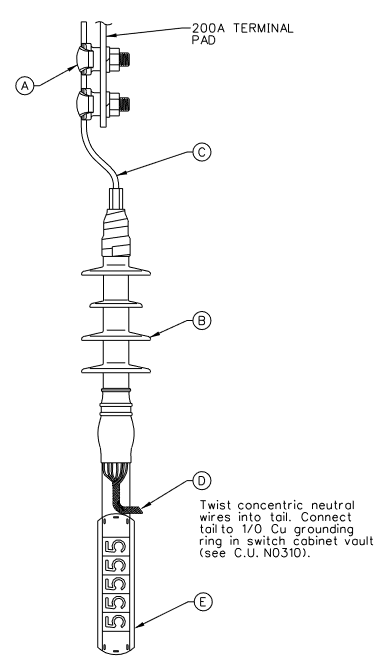

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1203 | A | Connector, Bar Tap #8 Sol - 2/0 Str | 2 | 217134 |
| B | Termination, Cable #2 & 1/0 Al Str 15kV Jktd Conc Neut | 1 | 777138 | |
| C | Connector, Stem #2 Str Al Compression | 1 | 786064 | |
| D | Connector, Cu C-Crimpit 1/0 Sol - 2/0 Str to #8 Sol - #2 Str | 1 | 1001655 | |
| E | Tag, Cable Number Plastic 1" Horizontal Digits | 1 | ------ | |
| T1204 | A | Connector, Bar Tap #8 Sol - 2/0 Str | 2 | 217134 |
| B | Termination, Cable #2 & 1/0 Al Str 15kV Jktd Conc Neut | 1 | 777138 | |
| C | Connector, Stem 1/0 Str Al Compression | 1 | 786072 | |
| D | Connector, Cu C-Crimpit 1/0 Sol - 2/0 Str to #8 Sol - #2 Str | 1 | 1001655 | |
| E | Tag, Cable Number Plastic 1" Horizontal Digits | 1 | ------ |
