T1205 - 350kcm 15kV Switch Cabinet Termination
Revision 2
Mar 13, 2012
Notes:
- Bend the soft-drawn copper stem of the stem connector, as necessary, to achieve proper alignment of the cable termination to:
- Maintain a minimum 1/2" clearance between the cable termination skirts and the fiberglass barriers that function as the switch bay walls.
- Maintain a minimum 1" clearance between the skirts of cable terminations in adjacent switch bays.
- Refer to Compatible Unit T1004 for 350 kcmil 15kV cable riser pole terminations.

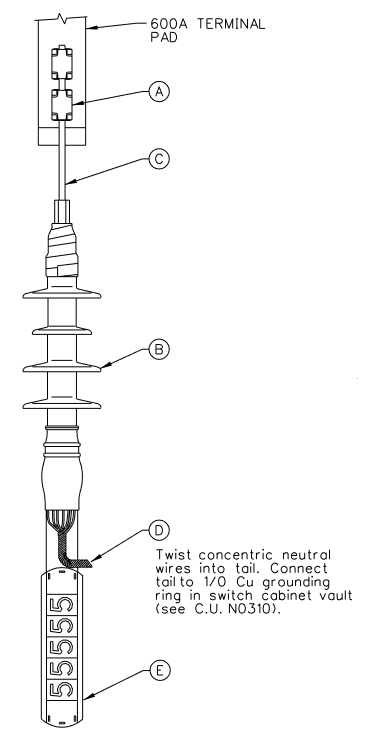

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1205 | A | Connector, Bar Tap #2 Sol Cu - 350 kcmil Str Cu | 2 | 217150 |
| B | Termination, Cable 350 kcmil Str Al 15kV Jktd Conc Neut | 1 | 777146 | |
| C | Connector, Stem 350 kcmil Str Al Compression | 1 | 504101 | |
| D | Connector, Cu C-Crimpit 1/0 Sol - 2/0 Str to #8 Sol - #2 Str | 1 | 1001655 | |
| E | Tag, Cable Number Plastic 1" Horizontal Digits | 1 | ------ |
