I0300-3 - 15kV Pin Insulators
Revision 4
Mar 6, 2008

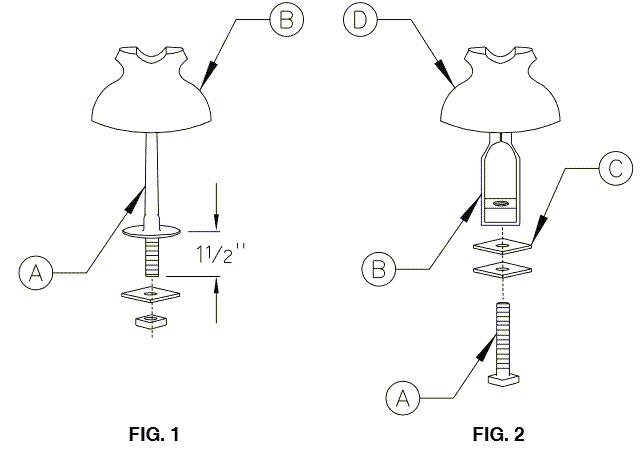

| Compatible Unit | Fig. | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| I0300 | 1 | A | Pin, Insulator Steel 5/8” x 1-1/2” | 1 | 895055 |
| B | Insulator, Pin #1177 | 1 | 935033 | ||
| I0300A | 2 | A | Bolt, machine 5/8” x 4” | 1 | 124131 |
| B | Pin, Insulator Adapter 5/8” Bolt End mount | 1 | 895013 | ||
| C | Washer, Galv Sq 2” flat 11/16” Hole | 2 | 910267 | ||
| D | Insulator, Pin #1177 | 1 | 935033 | ||
| I0300B | 2 | A | Bolt, machine 5/8” x 12” | 1 | 124199 |
| B | Pin, Insulator Adapter 5/8” Bolt End mount | 1 | 895013 | ||
| C | Washer, Galv Sq 2” flat 11/16” Hole | 2 | 910267 | ||
| D | Insulator, Pin #1177 | 1 | 935033 |
Notes:
- Compatible Unit I0300A is intended to be used when jumper insulators are needed on the light-duty Apitong deadend arm (MID 872615). Refer to Assembly Units 12F308 & 12F311.
- Compatible Unit I0300B is only used when jumper insulators are needed on wood Hughes Bros. 13’ heavy-duty deadend arm (MID 872623). Refer to Assembly Units 12F326 & 12F327.

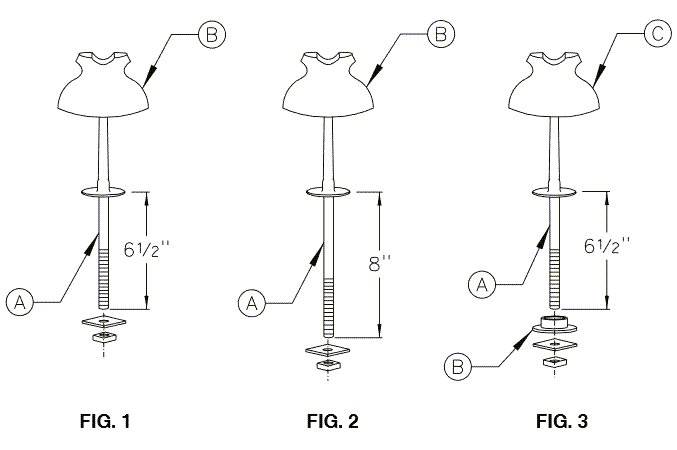

| Compatible Unit | Fig. | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| I0301 | 1 | A | Pin, Insulator Steel 5/8” x 6-1/2” | 1 | 895039 |
| B | Insulator, Pin #1177 | 1 | 935033 | ||
| I0302 | 2 | A | Pin, Insulator Steel 5/8” x 8” | 1 | 895378 |
| B | Insulator, Pin #1177 | 1 | 935033 | ||
| I0303 | 3 | A | Pin, Insulator 5/8” x 6-1/2” | 1 | 895039 |
| B | Washer, Centering | 1 | 910514 | ||
| C | Insulator, Pin #1177 | 2 | 935033 |
