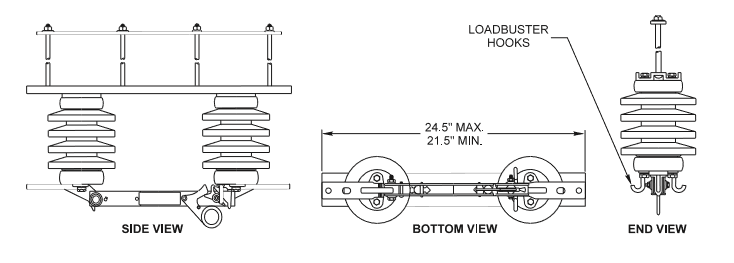

D0502 - 15kV 600A 1Ø Disconnect Switch

Compatible Unit	Description	Qty	MID
D0502	Switch, 600A 15kV 1Ø Disconnect Xarm Mount	1	506769

Notes:

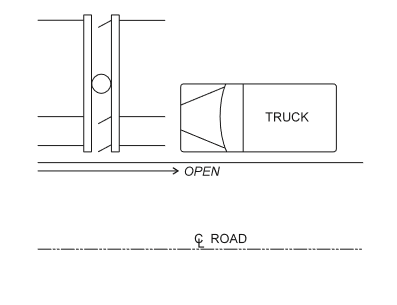

1. Where possible, switches should be mounted to pull open toward the normal vehicle approach side of the pole (see diagram).
2. 3Ø Group operated switches should be used for most feeder tie switch installations (refer to Compatible Units D0503, D0504, and D0505). 1Ø disconnect switches are appropriate for feeder terminal poles and temporary switch installations.
3. Refer to Compatible Units T0924-T0925 for switch extension terminal bars.
