T0924-6 - Extension Terminal Bars
Revision 6
Sep 17, 2012
Notes:

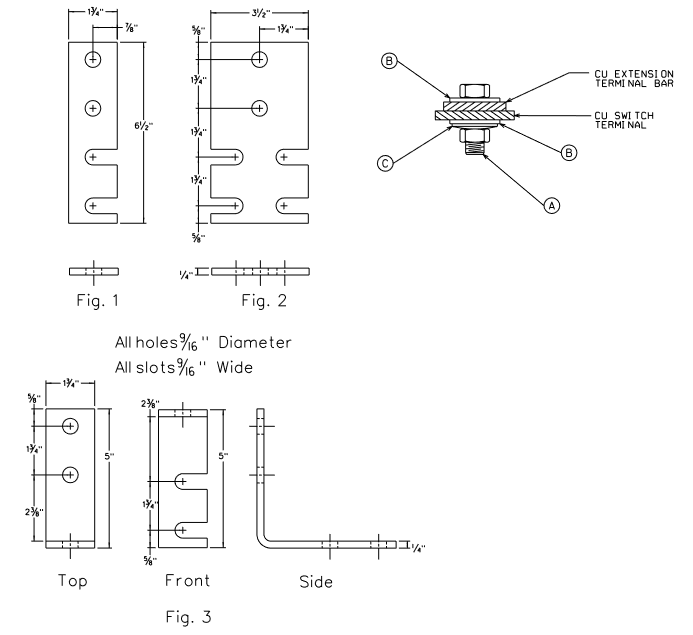

- Two bolt assemblies are required for mounting each extension terminal bar to a switch terminal.
- Each overhead distribution disconnect switch requires two terminal extension bars.
| Compatible Unit | Fig. | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| T0924 | A | Bolt, SS 1/2" x 1-1/2" | 2 | 103341 | |
| B | Washer, SS Rd 1-3/8" Flat 9/16" Hole | 4 | 191627 | ||
| C | Washer, SS Belleville 9/16" Hole | 2 | 191635 | ||
| D | Bar, Extension Terminal Single Tap | 1 | 504028 | ||
| T0925 | A | Bolt, SS 1/2" x 1-1/2" | 2 | 103341 | |
| B | Washer, SS Rd 1-3/8" Flat 9/16" Hole | 4 | 191627 | ||
| C | Washer, SS Belleville 9/16" Hole | 2 | 191635 | ||
| D | Bar, Extension Terminal Double Tap | 1 | 504010 | ||
| T0926 | A | Bolt, SS 1/2" x 1-1/2" | 2 | 103341 | |
| B | Washer, SS Rd 1-3/8" Flat 9/16" Hole | 4 | 191627 | ||
| C | Washer, SS Belleville 9/16" Hole | 2 | 191635 | ||
| D | Bar, Extension 90° Terminal Single Tap | 1 | 1002831 |
