D0503-D0504 - 15kV 600A 3Ø Gang-Operated Wing-Arm Unitized Switches
Revision 4
Apr 19, 2021

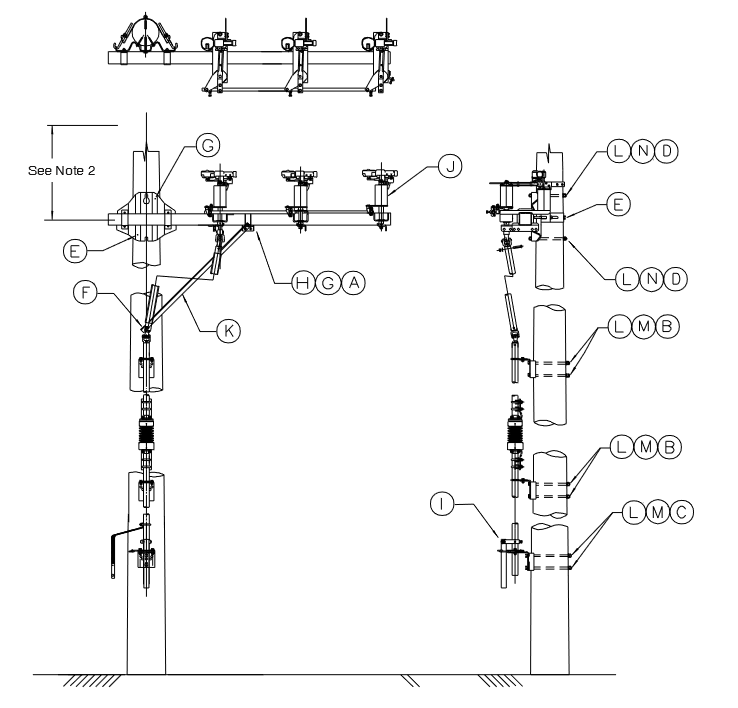

Righthand Type
Notes:
- When the switch handle is installed at the recommended mounting height of 42", the maximum switch mounting height, to the bottom of the switch arm, is 52'-1". Parts furnished with the standard switch package will allow a switch arm height of 34'-4". For control rod extension materials refer to compatible unit D0506SC.
- Centerline-to-centerline spacing between the switch arm and the line arm is 4'-0".
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| D0503 | A | Bolt, Machine 5/8" x 2-1/2" | 1 | 124032 |
| B | Bolt, Machine 5/8" x 16" | 6 | 124214 | |
| C | Bolt, Machine 5/8" x 18" | 2 | 124222 | |
| D | Bolt, Machine 3/4" x 16" | 2 | 124602 | |
| E | Screw, Lag 1/2" x 4" | 3 | 1003315 | |
| F | Screw, Lag 5/8" x 5" | 1 | 163999 | |
| G | Washer, Galv 5/8" Split Spring Lock | 1 | 196445 | |
| H | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 1 | 196479 | |
| I | Padlock, HS Stl Shkl "P" Key 1-1/2" | 1 | 412693 | |
| J | Switch, 600A 15kV 3Ø Gang-Op Righthand Wing-Arm | 1 | 506686 | |
| K | Brace, Galv Alley Arm 4' | 1 | 876617 | |
| L | Washer, Galv Sq 3" Curved 13/16" Hole | 10 | 910019 | |
| M | Washer, Galv Double Coil Spring Lock 5/8" | 8 | 1001443 | |
| N | Washer, Galv Double Coil Spring Lock 3/4" | 2 | 1001445 |

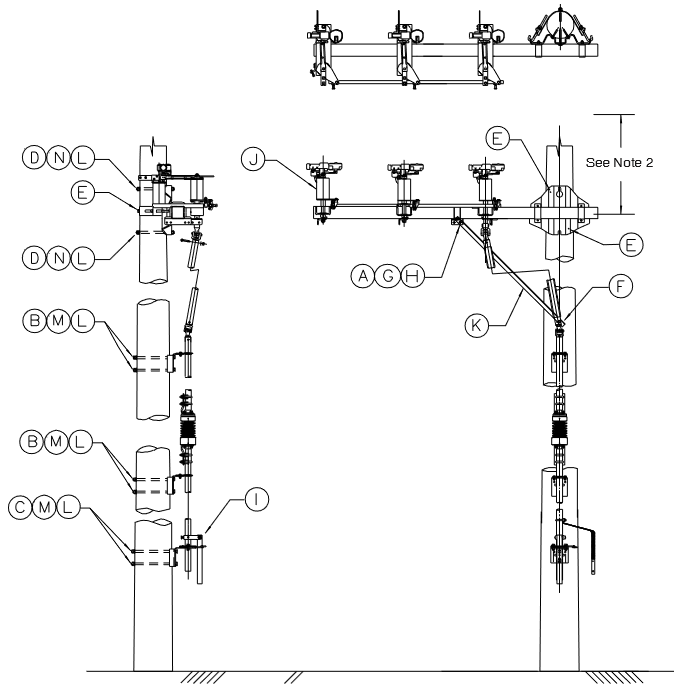

Lefthand Type
Notes:
- When the switch handle is installed at the recommended mounting height of 42", the maximum switch mounting height, to the bottom of the switch arm, is 52'-1". Parts furnished with the standard switch package will allow a switch arm height of 34'-4". For control rod extension materials refer to compatible unit D0506SC.
- Centerline-to-centerline spacing between the switch arm and the line arm is 4'-0".
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| D0504 | A | Bolt, Machine 5/8" x 2-1/2" | 1 | 124032 |
| B | Bolt, Machine 5/8" x 16" | 6 | 124214 | |
| C | Bolt, Machine 5/8" x 18" | 2 | 124222 | |
| D | Bolt, Machine 3/4" x 16" | 2 | 124602 | |
| E | Screw, Lag 1/2" x 4" | 3 | 1003315 | |
| F | Screw, Lag 5/8" x 5" | 1 | 163999 | |
| G | Washer, Galv 5/8" Split Spring Lock | 1 | 196445 | |
| H | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 1 | 196479 | |
| I | Padlock, HS Stl Shkl "P" Key 1-1/2" | 1 | 412693 | |
| J | Switch, 600A 15kV 3Ø Gang-Op Lefthand Wing-Arm | 1 | 506694 | |
| K | Brace, Galv Alley Arm 4' | 1 | 876617 | |
| L | Washer, Galv Sq 3" Curved 13/16" Hole | 10 | 910019 | |
| M | Washer, Galv Double Coil Spring Lock 5/8" | 8 | 1001443 | |
| N | Washer, Galv Double Coil Spring Lock 3/4" | 2 | 1001445 |
