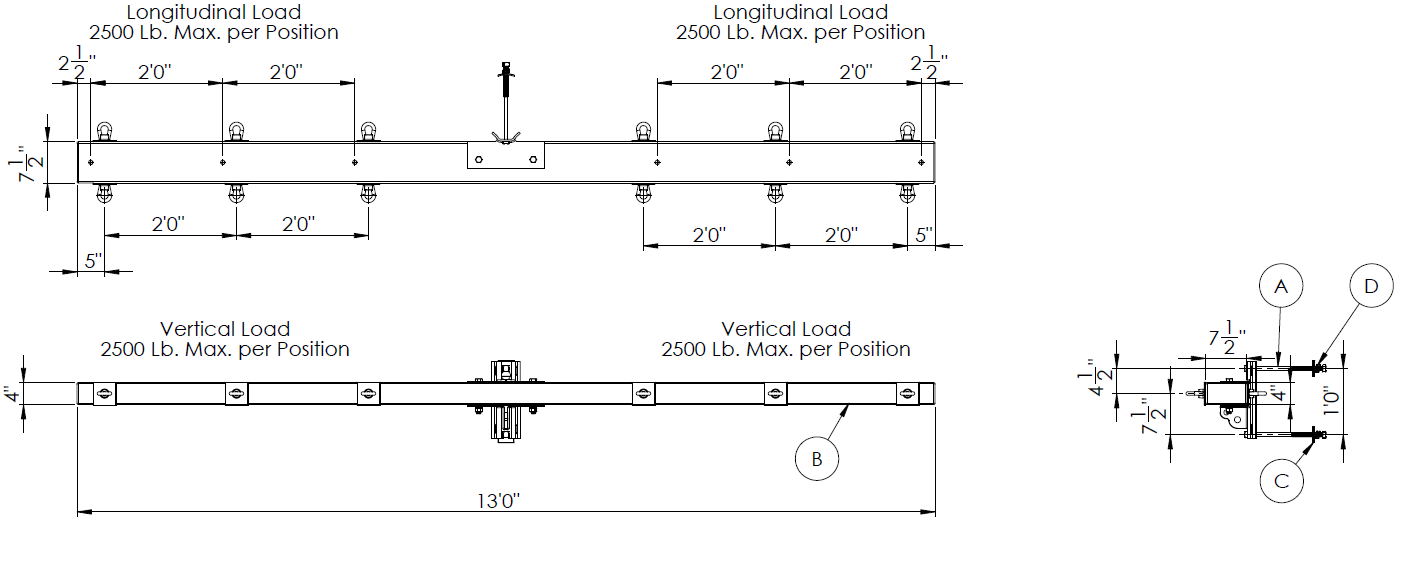

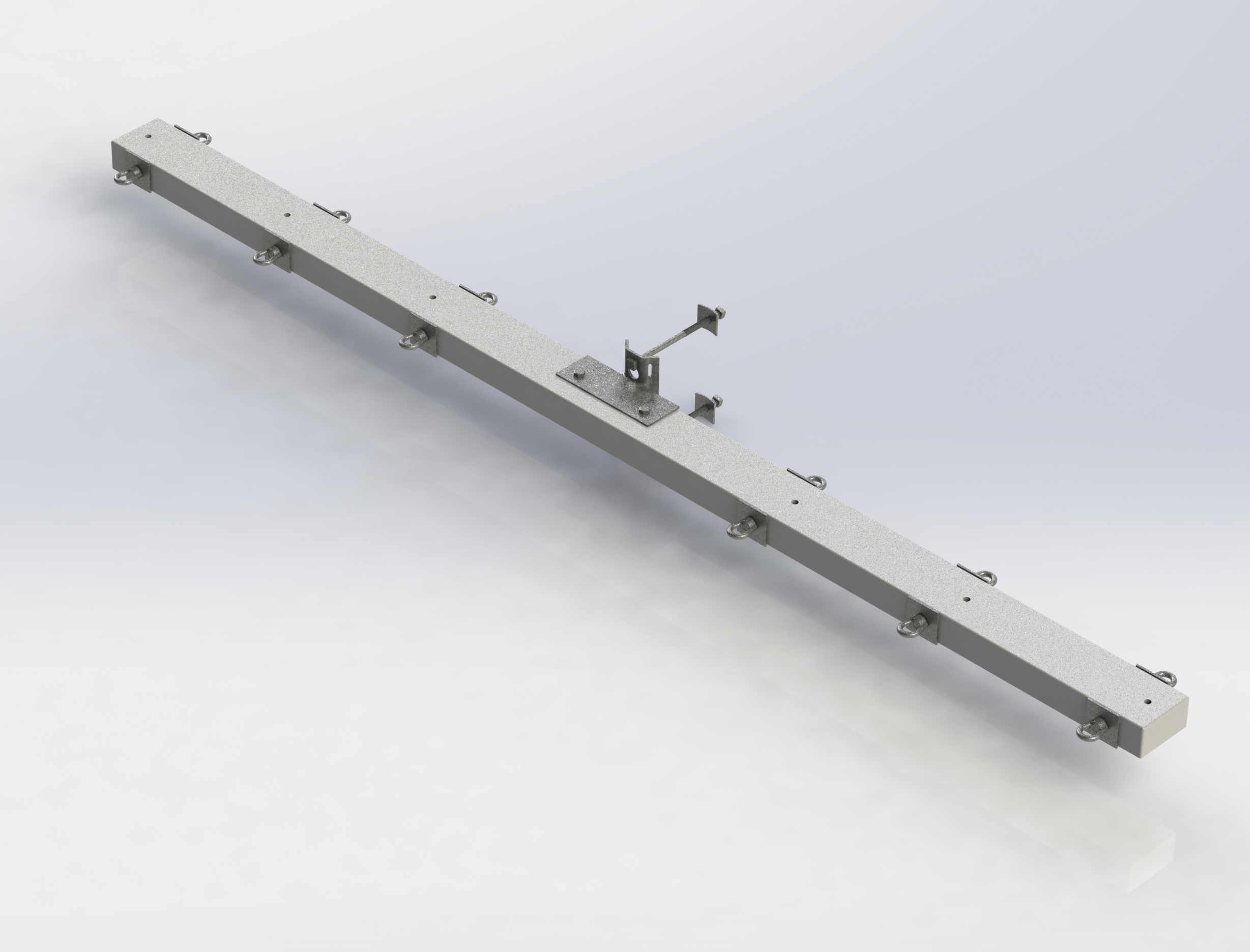

X0203 - 13' Medium Duty 6-Position Fiberglass Deadend Crossarm
Revision 4
Jan 14, 2010
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0203 | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Crossarm, 13’ 6-Pos Medium Duty DE | 1 | 872623 | |
| C | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 |
Notes:
- This crossarm is intended to replace quad 13’ crossarms (see Compatible Unit X0605) for deadending and double deadending six 336.4 kcmil AAC or smaller conductors.
- Maximum allowable conductor deadend tension on this crossarm is 2,500 lb./Ø. Maximum allowable vertical loading is 2,500 lb./Ø. For higher tensions refer to Compatible Unit X0213.
