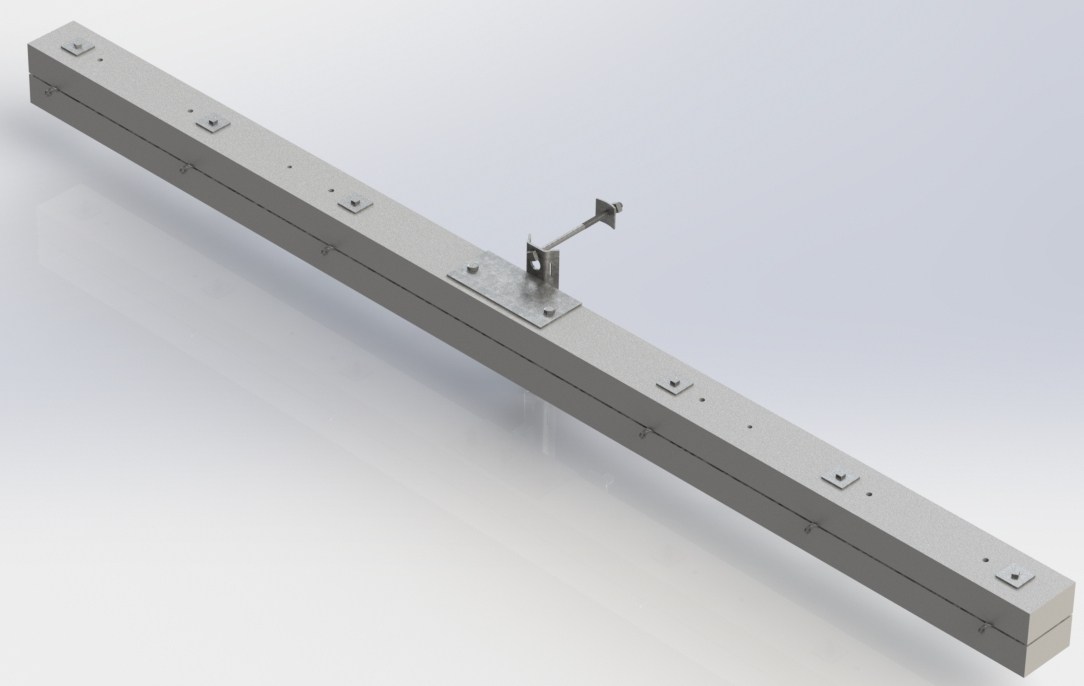

X0213 - 13' Heavy Duty 6-Position Fiberglass Deadend Crossarm
Revision 1
Jan 14, 2010

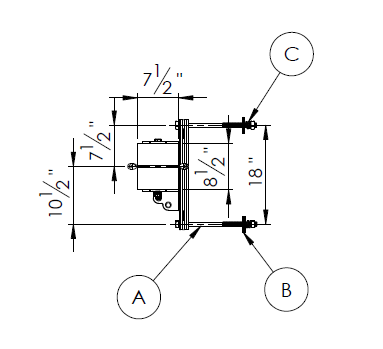

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0213 | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| C | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| D | Crossarm, 13’ 6-Pos Heavy Duty DE | 1 | 1001820 |
Notes:
- This crossarm is intended for deadending and double deadending six 795 kcmil AAC conductors on double circuit flat structures.

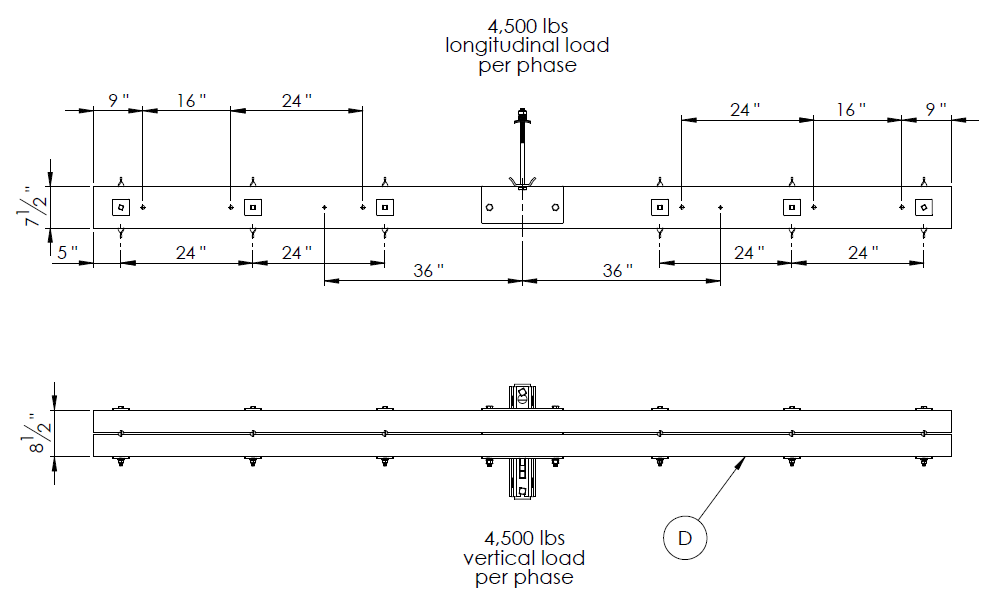

- Maximum allowable conductor deadend tension on this crossarm is 4,500 lb./Ø. Maximum allowable vertical loading is 4,500 lb./Ø.
