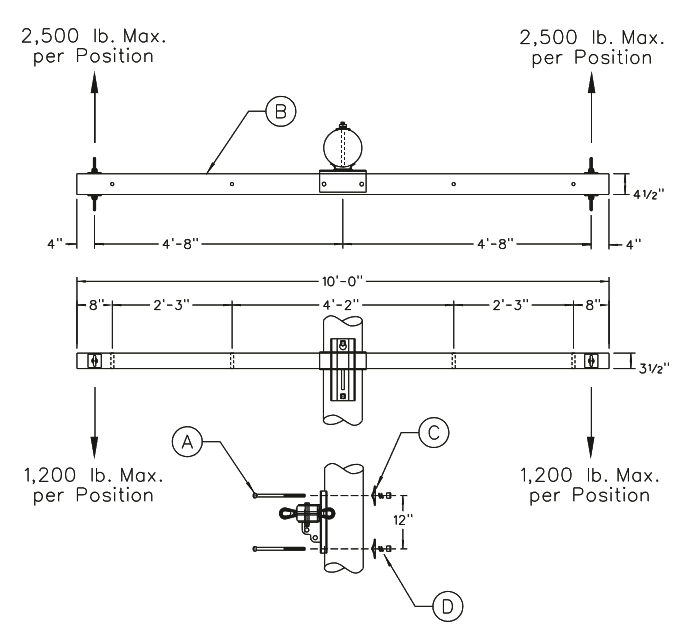

X0201 - 10' Light Duty Unitized Deadend Crossarm

Revision 5
Jan 21, 2021

Compatible Unit Item Description Qty MID
X0201 A Bolt, Machine 5/8” x 14” 2 124206
  B Crossarm, Fiberglass 10’ 2-Pos Light Duty DE 1 872615
  C Washer, Galv Sq 3” Curved 13/16” Hole 2 910019
  D Washer, Galv Double Coil Spring Lock 5/8” 2 1001443

Notes:

  1. This crossarm is intended to replace triple 10’ crossarms (see Compatible Unit X0403) for deadending and double deadending three 336.4 kcmil AAC or smaller conductors.
  2. Maximum allowable conductor deadend tension on this crossarm is 2,500 lb./Ø. Maximum allowable vertical loading is 1,200 lb./Ø. For higher tensions refer to Compatible Unit X0212.
  3. This crossarm is not suitable for mounting underarm disconnect switches. Instead use a heavy duty 10' 4-position crossarm per Compatible Unit X0212.
