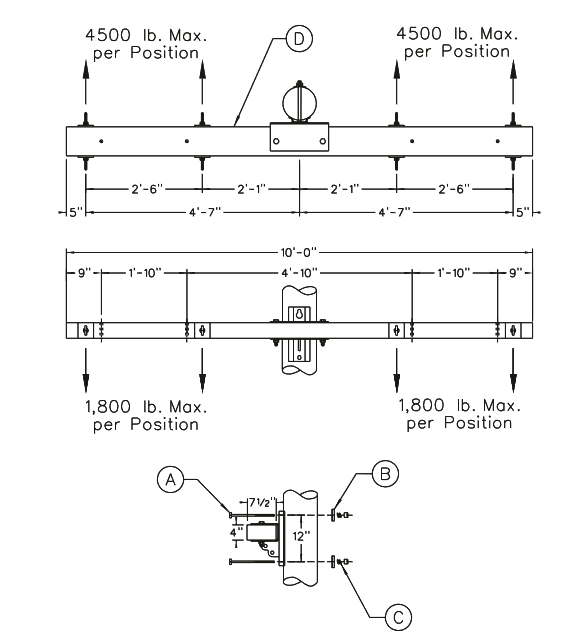

X0212 - 10' Heavy Duty Unitized Deadend Crossarm

Revision 0
Nov 3, 2005

Compatible Unit Item Description Qty MID
X0212 A Bolt, Machine 3/4” x 14” 2 124595
  B Washer, Galv Sq 3” Curved 13/16” Hole 2 910019
  C Washer, Galv Double Coil Spring Lock 3/4” 2 1001445
  D Crossarm, 10’ 4-Pos Heavy Duty DE 1 1001822

Notes:

  1. This crossarm is intended for deadending and double deadending 795 kcmil AAC on 4-over-2 double circuit structures.
  2. Maximum allowable conductor deadend tension on this crossarm is 4,500 lb./Ø. Maximum allowable vertical loading is 1,800 lb./Ø.
