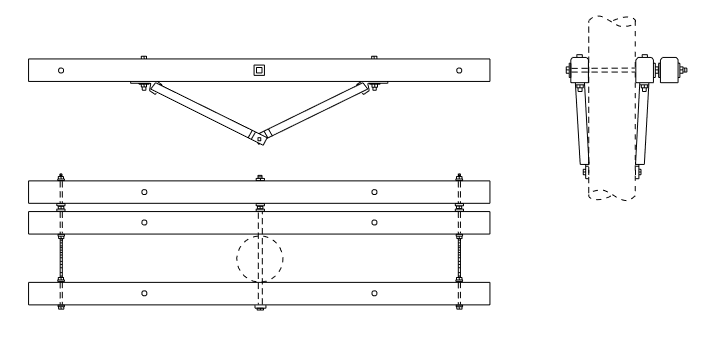

X0403 - Triple 10' 4 Steel Pin Crossarm *Maintenance Only*
Revision 3
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0403 | Bolt, Machine 1/2" x 7" | 4 | 123828 |
| Bolt, Machine 5/8" x 24" | 1 | 124264 | |
| Bolt, D.A. 5/8" x 24" | 2 | 125981 | |
| Screw, Lag 5/8" x 5" | 2 | 163999 | |
| Washer, Galv Rd 1-3/8" OD Flat 9/16" Hole | 4 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 3 | 872566 | |
| Brace, Crossarm Wood 36-1/2" | 4 | 876154 | |
| Washer, Square 5/8" | 16 | 910267 |
