T0516 - Straight-Line Clamp for Copper Conductors

Revision 2
Nov 27, 2017

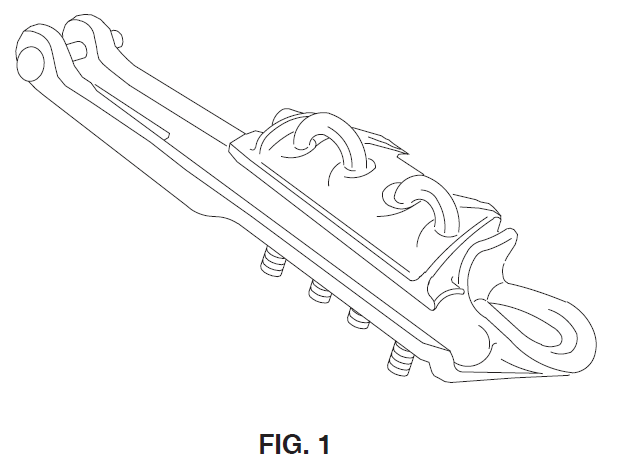

Compatible Unit Fig. Description Qty MID
T0516 1 Clamp, Straight Line 1/0-4/0 Cu (Hot) 1 1002148

Notes:

  1. This clamp is tin-plated and are compatible with copper conductors. When deadending aluminum and ACSR conductors, refer to Compatible Units T0301-T0307.
  2. Copper conductors may also be deadended using automatic deadends. Refer to Compatible Units T0501-T0509.
