T0501-9 - Automatic Deadends for Copper Conductors
Revision 4
Dec 29, 2008
| Compatible Unit | Fig. | Conductor | Qty | MID |
|---|---|---|---|---|

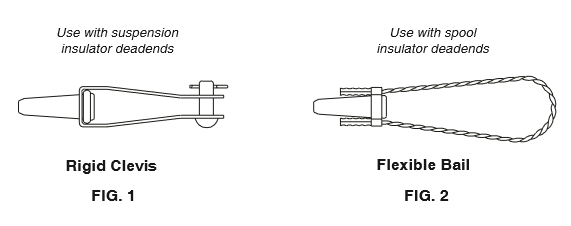

| T0501 | 1 | #6 Sol Cu | 1 | 928509 |
| T0502 | 1 | #4 Sol Cu | 1 | 928517 |
| T0503 | 1 | #2 Sol Cu | 1 | 928525 |
| T0504 | 1 | 1/0 Sol & Str Cu | 1 | 928541 |
| T0505 | 1 | 2/0 Sol & 1/0 Str Cu | 1 | 928559 |
| T0506 | 1 | 3/0 Sol & 2/0 Str Cu | 1 | 928567 |
| T0506A | 1 | 3/0 Str & 4/0 Sol Cu | 1 | 1001362 |
| T0507 | 1 | 4/0 Str Cu | 1 | 928583 |
| T0508 | 2 | #6 Sol Cu | 1 | 928806 |
| T0509 | 2 | #4 Sol & #6 Str Cu | 1 | 928814 |
Notes:
- Use automatic deadends only for full tension applications. Do not use automatics in slack or reduced tension spans as a poor connection will result. When installed and operated with insufficient tension, automatics will not achieve and maintain adequate jaw set to provide a good connection free of radio noise.
- Use of automatics for deadending District transmission conductors is prohibited unless otherwise authorized by the District's Transmission Engineering Group.
