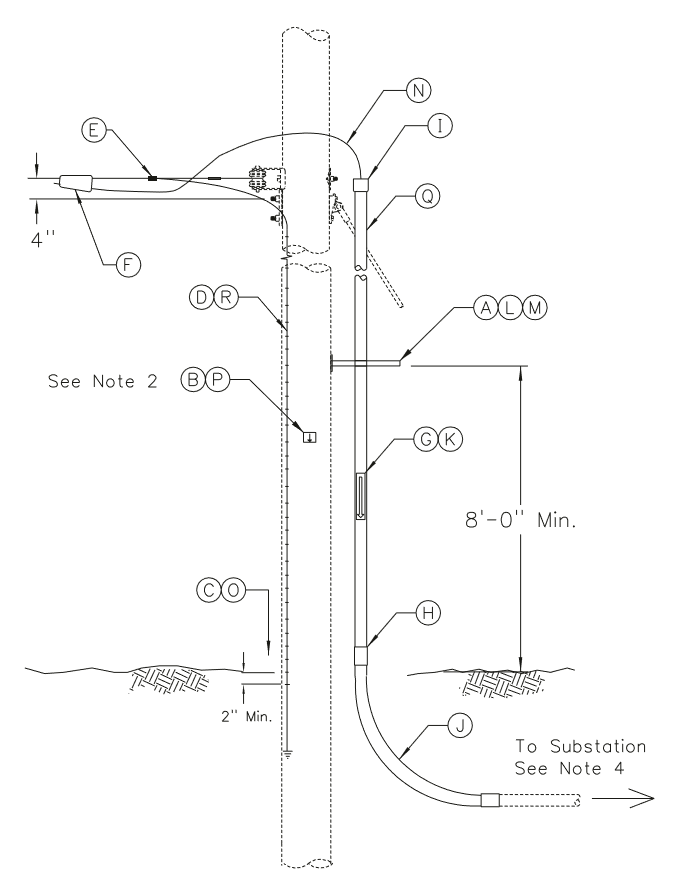

N0281 - Overhead Neutral Getaway Ground
Revision 3
Apr 19, 2021
| Item | Description | Qty | MID |
|---|---|---|---|
| A | Screw, Lag 1/2" x 4" | 16 | 1003315 |
| B | Nail, Cu 2" | 4 | 138025 |
| C | Nail, Steel Galv 3-1/2" | 4 | 138059 |
| D | Staple, Galv 1-1/2” | 50 | 139114 |
| E | Connector, Mini-Wedge | 1 | 212--- |
| F | Connector, Wedge | 1 | 212--- |
| G | Conduit, PVC 2" Sch 80 Gray | 10' | 250069 |
| H | Coupling, Conduit PVC 2" Sch 40 Deep Socket | 2 | 250481 |
| I | End, Bell PVC 2" Sch 40 | 1 | 250720 |
| J | Bend, Conduit PVC 2" 90° 24" R | 1 | 257528 |
| K | Decal, Buried Power Cable | 1 | 1002429 |
| L | Bracket, Conduit Standoff 15" | 4 | 76123 |
| M | Clamp, Conduit Standoff 2" | 4 | 761321 |
| N | Wire, 500 kcmil Al 600V 37-Str | 40' | 832205 |
| O | Plate, Cu Ground 288 in2 | 1 | 1001801 |
| P | Tag, Grounding | 1 | 1001802 |
| Q | Conduit, PVC 2" Sch 40 Gray | 20' | 1001852 |
| R | Wire, CW #10X7ST WP | 50' | 1002626 |
Notes:
- This Compatible Unit is intended for terminating distribution neutrals when replacing or relocating existing overhead getaway poles.
- Install grounding tag at eye level next to ground wire moulding. This tag signifies the pole is grounded per NESC Article 094.
- Ground plates (Item R) are intended for new pole installations. Ground rods may be used to ground existing poles. Refer to C. U. N0110 for more information on ground plate installation and C. U. N0101 for more information on single ground rod installation.
- Coordinate with Substation Engineering for installation and termination of neutral wire (Item N) inside the substation.
