N0101 - Single Ground Rod Installation
Revision 8
Jan 24, 2019
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0101 | A | Nail, Cu 2" | 4 | 138025 |
| B | Staple, Galv 1-1/2” | 30 | 139114 | |
| C | Clamp, Ground Rod 5/8” | 1 | 880709 | |
| D | Rod, Ground 5/8” x 8’ | 1 | 902206 | |
| E | Tag, Grounding | 1 | 1001802 | |
| F | Wire, CW #10X7ST WP | 40' | 1002626 |
Notes:

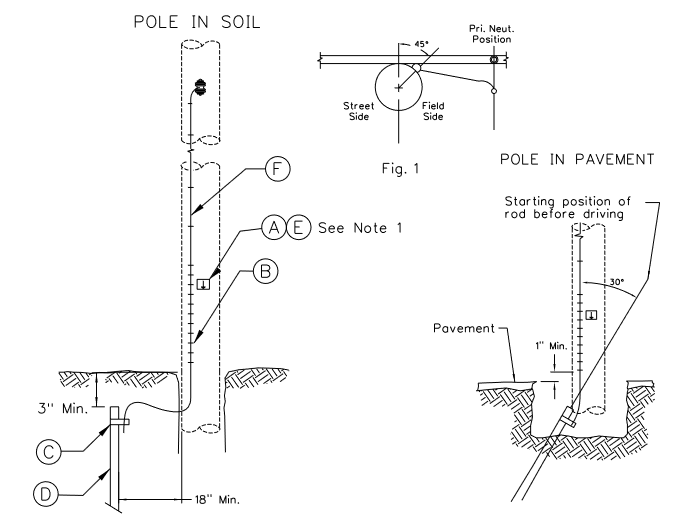

- Install grounding tag at eye level next to ground wire molding. This tag signifies the pole is grounded per NESC Article 094.
- Place the ground wire on the same side of the pole as the neutral conductor and in the quadrant outside of the climbing space. If the neutral is located in the primary position, extend ground wire moulding up through the supply space and connect to neutral as shown in Figure 1.
- Staple Copperweld ground wire to pole every 6" for first 8' above ground. Staple ground wire every 2' from 8' above ground to neutral.
- Ground plates are preferred for grounding new poles. Refer to Compatible Unit N0110.
