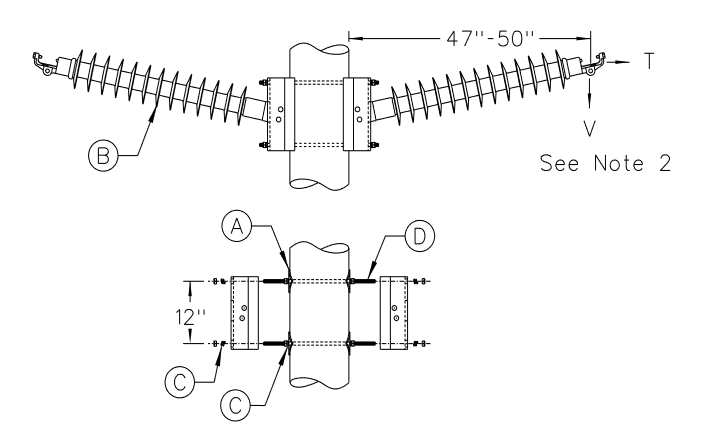

I0706 - 115kV Polymer Horizontal Line Post Insulator (Back-to-Back Mounting)

Revision 5
Jun 25, 2015

Compatible Unit Item Description Qty MID
I0706 A Washer, Galv Sq 3" Curved 13/16" Hole 4 910019
  B Insulator, Horizontal Post 115kV Polymer 2 937758
  C Washer, Galv Double Coil Spring Lock 3/4" 8 1001445
  D Bolt, DA 3/4" x 22" 2 1001585

Notes:

  1. For required conductor clamps, refer to Compatible Unit R1001-R1011.
  2. Refer to combined loading chart on Compatible Unit I0707.
