I0707 - 115kV Polymer Horizontal Line Post Insulator (49" Pole Clearance)
Revision 3
Jun 11, 2007

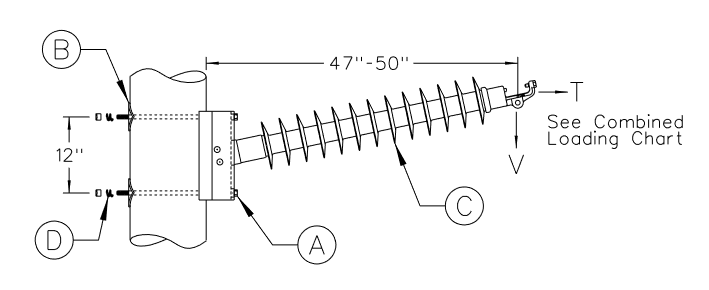

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0707 | A | Bolt, Machine 3/4” x 18” | 2 | 124610 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| C | Insulator, Horizontal Post 115kV Polymer 49” Nominal | 1 | 937758 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 |
Note:
- For required conductor clamps, refer to Compatible Units R1001 - R1011.
