G0204-5 - 3/8" & 1/2" Span Guy, Distribution Pole to Stub, 60' Roadway, Existing Hardware (Medium & Heavy Loads)

Revision 0
Apr 5, 2006

Notes:

  1. These units are intended for attaching distribution span guys to existing guy plates or crossarms with built-in guy attachments. Refer to Compatible Units G0202 - G0203 for span guys with mounting hardware.
  2. Use Compatible Units G0307 - G0308 for down guys backing up span guys attached to stub poles with no energized attachments. Use Compatible Units G0113 - G0114 for down guys backing up span guys attached to distribution poles
  3. All guys installed on poles with energized attachments shall include a guy strain insulator. Refer to T&D Guideline 4-6-1.5 for more information on use and placement of guy strain insulators.
  4. Use Compatible Unit G0204 for guy tensions up to 8,299 lb. Use Compatible Unit G0205 for guy tensions between 8,300 lb and 14,497 lb.

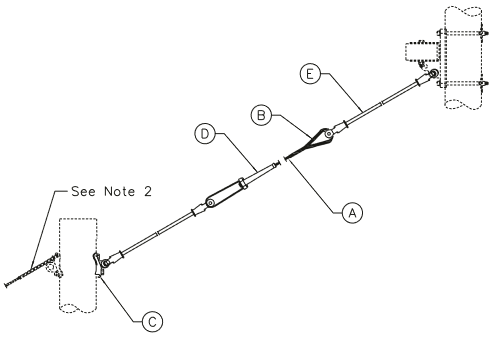

Compatible Unit Guy Size Item Description Qty MID
G0204 3/8" A Wire, Guy EHS 3/8” Galv Stl 7-Str 62' 858623
    B Deadend, Guy Preformed 3/8” 1 880452
    C Hook, Combination Guy 1 884579
    D Deadend, Guy Automatic 3/8” 1 923418
    E Insulator, Strain FG 78” 2 939209

G0205 1/2" A Wire, Guy EHS 1/2” Galv Stl 7-Str 62' 858748
    B Deadend, Guy Preformed 1/2” 1 880460
    C Hook, Combination Guy 1 884579
    D Deadend, Guy Automatic 1/2” 1 923426
    E Insulator, Strain FG 78” 2 939209
