G0202-3 - 3/8" & 1/2" Span Guy, Distribution Pole to Stub, 60' Roadway (Medium & Heavy Loads)
Revision 4
Apr 5, 2006
Notes:
- These units include mounting hardware. For attaching distribution span guys to existing guy plates or\ crossarms with built-in guy attachments, refer to Compatible Units G0204 - G0205.
- Use Compatible Units G0307 - G0308 for down guys backing up span guys attached to stub poles with no energized attachments. Use Compatible Units G0113 - G0114 for down guys backing up span guys attached to distribution poles
- All guys installed on poles with energized attachments shall include a guy strain insulator.
- Use Compatible Unit G0202 for guy tensions up to 8,299 lb. Use Compatible Unit G0203 for guy tensions between 8,300 lb and 14,497 lb.

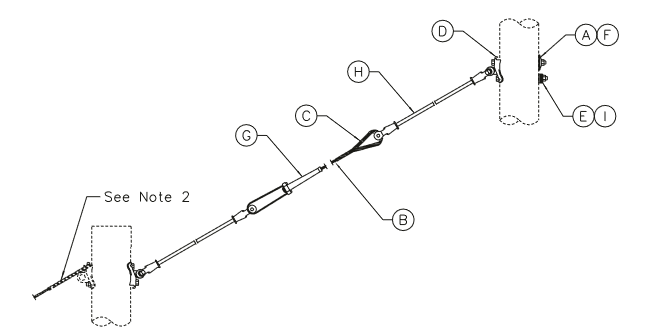

| Compatible Unit | Guy Size | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| G0202 | 3/8" | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Wire, Guy EHS 3/8” Galv Stl 7-Str | 62' | 858623 | ||
| C | Deadend, Guy Preformed 3/8” | 1 | 880452 | ||
| D | Hook, Combination Guy | 2 | 884579 | ||
| E | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | ||
| F | Washer, Cast Sq 4” Curved 15/16” Hole | 1 | 910035 | ||
| G | Deadend, Guy Automatic 3/8” | 1 | 923418 | ||
| H | Insulator, Strain FG 78” | 2 | 939209 | ||
| I | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | ||
| G0203 | 1/2" | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Wire, Guy EHS 1/2” Galv Stl 7-Str | 62' | 858748 | ||
| C | Deadend, Guy Preformed 1/2” | 2 | 880460 | ||
| D | Hook, Combination Guy | 2 | 884579 | ||
| E | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | ||
| F | Washer, Cast Sq 4” Curved 15/16” Hole | 1 | 910035 | ||
| G | Deadend, Guy Automatic 1/2” | 1 | 923426 | ||
| H | Insulator, Strain FG 78” | 2 | 939209 | ||
| I | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | ||
