D0561-D0564 - Vista SF6 Dead-Front Pad-Mounted Switch Cabinets 600A 15kV 3Ø

Revision 6
Dec 1, 2016

Notes:

  1. Contact System Planning & Protection before specifying S&C Vista switch cabinets, per T&D Guideline 4-24-30.0.

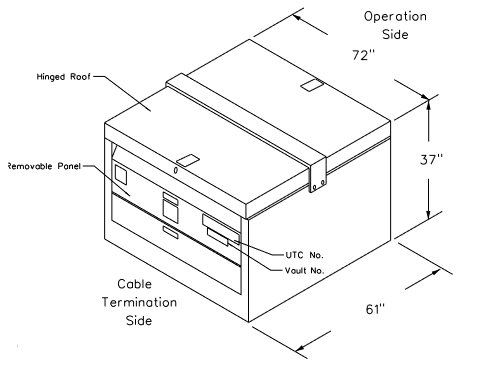

  2. S&C Vista switch cabinets do not contain fuses. The tap circuits are controlled with 600A micro-processor controlled, resettable, fault interrupters.
  3. Apply switch number labels on exterior and interior of cabinet on operation side.
  4. Apply vault number labels on both sides of cabinet exterior.
  5. Transformer Shop will apply UTC number and obstruction notice labels on both sides of cabinet.
  6. Face cable termination side of cabinet towards street or, if the street side is obstructed, face it in the direction with the most working clearance.
  7. Install S&C Vista switch cabinets on vault C.U. V0503.
  8. When making up 600A cable terminations use Cooper T-OP II 600A 15kV dead-break elbow (hammerhead) equipped with 200A bushing interface to accommodate grounding elbow. See Compatible Units T1106 - T1108.
  9. 200A elbows may be used on 600A fault interrupter ways by installing a 600A/200A bushing adapter on each 600A bushing. See C.U. T1609.
  10. When a cable is not being terminated on a 600A bushing, install a 600A deadend cap. See C.U. T1703.
* The model number defines the total number of "ways", i.e., the number of load interrupter switch ways and the number of fault-interrupter ways. For example, a Model 431 has "4" ways total of which "3" are load-interrupter switch ways and "1" is a fault interrupter way.

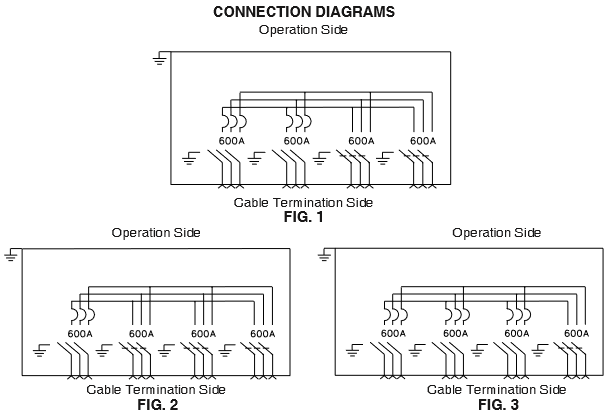

Compatible Unit Fig. S&C Model* No. of 3Ø 600A Load Interrupter Ways No. of 3Ø 600A Vacuum Fault Interrupter Ways Net Weight (lb) MID
D0561 1 422 2 2 1100 1000685
D0563 2 431 3 1 1100 1001277
D0564 3 413 1 3 1100 1001276

Compatible Unit Fig. Description Qty MID
D0561 1 Switch Cabinet, S&C Vista Dead-Front Pad-Mt 3Ø 15kV w/ 2 - 600A Load Interrupter & 2 - 600A Vac Flt Interrupter 1 1000685
    Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 1-1/2" H Opening 2 412677

D0563 2 Switch Cabinet, S&C Vista Dead-Front Pad-Mt 3Ø 15kV w/ 3 - 600A Load Interrupter, 1 - 600A Vac Flt Interrupter 1 1001277
    Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 1-1/2" H Opening 2 412677

D0564 3 Switch Cabinet, S&C Vista Dead-Front Pad-Mt 3Ø 15kV w/ 1 - 600A Load Interrupter, 3 - 600A Vac Flt Interrupter 1 1001276
    Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 1-1/2" H Opening 2 412677
