V0503 - S&C Vista Switch Cabinet Vault
Revision 4
Aug 5, 2014

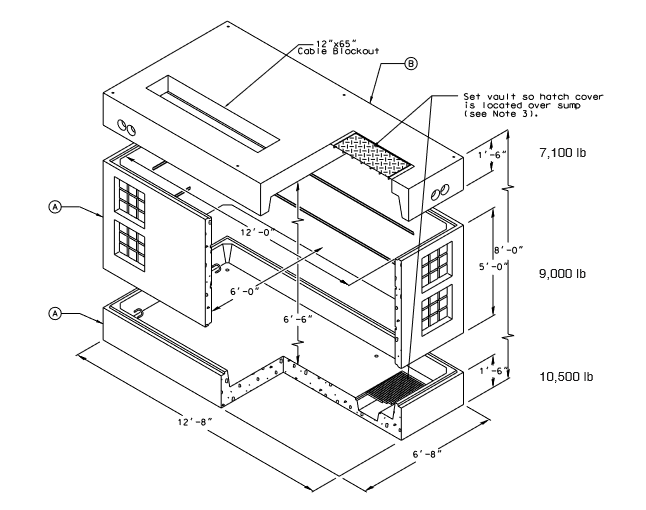

| C.U. | Item | Section | Description | Qty | MID |
|---|---|---|---|---|---|
| V0503 | A |
Bottom Middle |
Vault, 2-Piece Concrete 6'8"W x 12'8"L x 1'6"H 6'8"W x 12'8"L x 5'H |
1 | 1003601 |
| B | Cover | 6'8"W x 12'8"L x 1'6"D w/ 12" x 65" Cable Blockout & 36" Sq Diamond Plate Hatch Cover |
1 | 1002285 |
Notes:
- When there is a delay between setting the vault and installing the pad-mounted switchgear, use solid cover MID 790023 (5'4"W x 6'L x 4"H) to cover the cable blockout in the vault cover.
- For the vault cover only, see MID 1002285.
- Orient the vault base section so the pump sump is located below the hatch cover.
- Section weights are approximate.
