Obsolete - D0555-D0558 - Live-Front Pad-Mounted Switch Cabinets 200A/600A 15kV 3Ø
Revision 4
Aug 28, 2012
Notes:

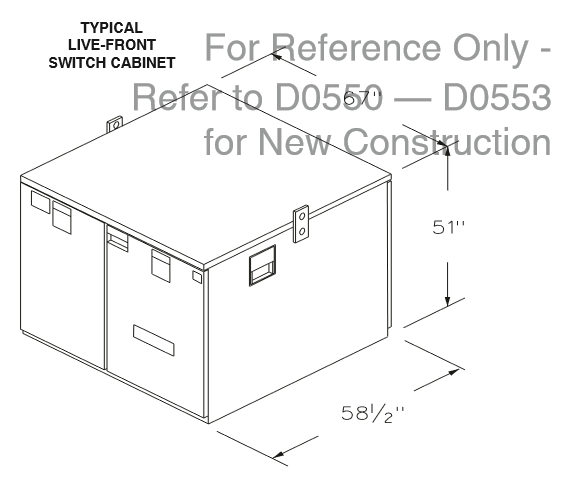

- Cabinet dimensions shown in illustration are typical. Actual dimensions vary by manufacturer. Cabinets are compatible with the vault cover shown in Compatible Unit V0502.
- Refer to Compatible Unit E0501 for selection of S&C SM-4 fuse refill units for use in 200A 14.4kV S&C SML-4Z fuseholders.
- One padlock is required for each door latch and one for each switch-operating hub access cover. Required padlocks are included in each Compatible Unit
- Fault indicator quantities issued with each switch are based on the assumption that all switch compartments will be utilized. If any switch positions will be unused, delete appropriate quantities of fault indicators, fiber optic indicator cables and fault indicator labels.
- Install fault indicators at each 600 amp switch position on each cable leaving the switch cabinet feeding load. To enable detecting fault indicator operation without opening the cabinet, for each set of 3 fault indicators install one 3-to-1 fiber optic cable. Each fiber optic cable is equipped with a lens which is to be installed through a ⁵⁄₁₆" hole drilled in the door of the pertinent compartment, approximately 12" below the upper outside corner of the door.
- Install a fault indicator label directly below the fiber optic cable fault indicator lens on the exterior of the door of each compartment containing fault indicators. Refer to Compatible Units W0135 - W0136 for additional information on fault indicator signage.
| Compatible Unit | Type | Description | Qty | MID |
|---|---|---|---|---|

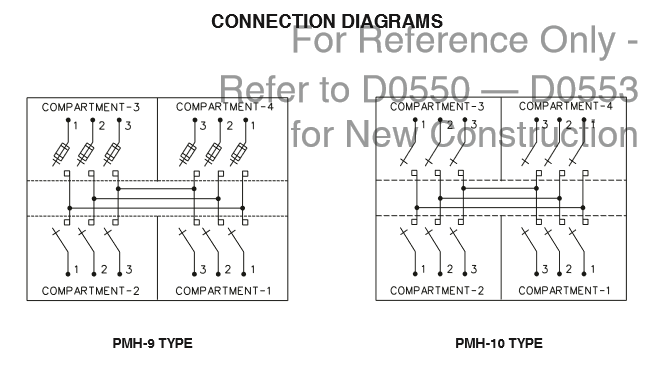

| D0555 | PMH-9 | 2-3Ø 600A Disconnect Switch and 2-3Ø 200A Fused Switch | 1 | 802092 |
| Fuseholder, Switch Cabinet LB 200A 14.4kV S&C SML-4Z | 6 | 315582 | ||
| Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 3/4" H Opening | 4 | 1000750 | ||
| Indicator, Fault, Adaptive Trip Sgl Phase 1.57"-2.37" Opening | 3 | 762379 | ||
| Indicator, Fault, Cable 3-Phase Fiber Optic 6' | 1 | 1001523 | ||
| Label, Information, "Fault Indicator" | 1 | 385824 | ||
| D0556 | PMH-10 | 4-3Ø 600A Disconnect Switch | 1 | 802109 |
| Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 3/4" H Opening | 6 | 1000750 | ||
| Indicator, Fault, Adaptive Trip Sgl Phase 1.57"-2.37" Opening | 9 | 762379 | ||
| Indicator, Fault, Cable 3-Phase Fiber Optic 6' | 3 | 1001523 | ||
| Label, Information, "Fault Indicator" | 3 | 385824 |
| Compatible Unit | Type | Description | Qty | MID |
|---|---|---|---|---|

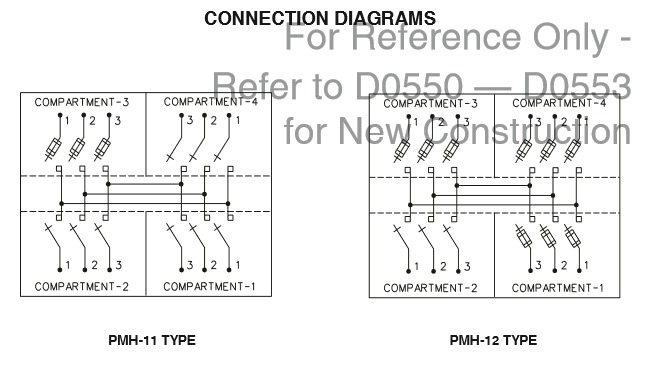

| D0557 | PMH-11 | 3-3Ø 600A Disconnect Switch and 1-3Ø 200A Fused Switch | 1 | 802117 |
| Fuseholder, Switch Cabinet LB 200A 14.4kV S&C SML-4Z | 3 | 315582 | ||
| Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 3/4" H Opening | 5 | 1000750 | ||
| Indicator, Fault, Adaptive Trip Sgl Phase 1.57"-2.37" Opening | 6 | 762379 | ||
| Indicator, Fault, Cable 3-Phase Fiber Optic 6' | 2 | 1001523 | ||
| Label, Information, "Fault Indicator" | 2 | 385824 | ||
| D0558 | PMH-12 | 1-3Ø 600A Disconnect Switch and 3-3Ø 200A Fused Switch | 1 | 802125 |
| Fuseholder, Switch Cabinet LB 200A 14.4kV S&C SML-4Z | 9 | 315582 | ||
| Padlock, P-Key 5/16" Stl Shackle, 7/8" W x 3/4" H Opening | 3 | 1000750 |
