V0502 - Livefront Switch Cabinet Vault, 6'-8" X 12'-8" X 8'
Revision 7
Aug 5, 2014
| C.U. | Item | Section | Description | Qty | MID |
|---|---|---|---|---|---|

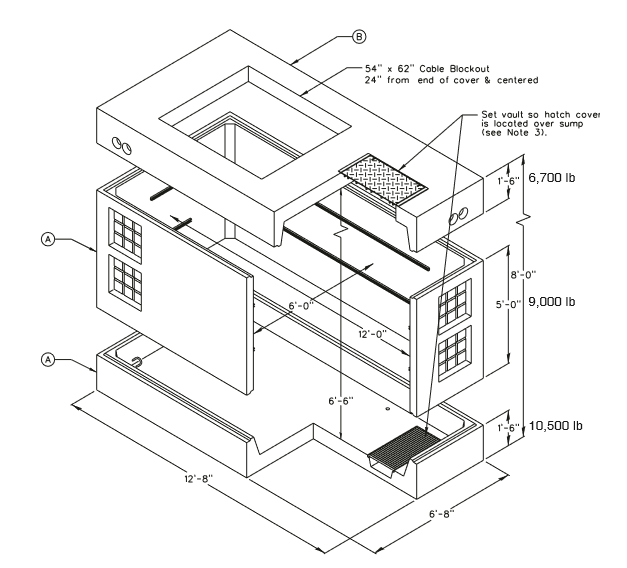

| V0502 | A | Bottom Middle | Vault, 2-Piece Concrete 6'8"W x 12'8"L x 1'6"H 6'8"W x 12'8"L x 5'H | 1 | 1003601 |
| B | Cover | 6'-8"W x 12'-8"L x 1'-6"D w/54" x 62" Cable Blockout & 36" Sq Diamond Plate Hatch Cover | 1 | 1002001 |
Notes:
- When there is a delay between setting the vault and installing the pad-mounted switchgear, use solid cover MID 790023 (5'-4" x 6'-0" x 4") to cover the cable blockout in the vault cover.
- For the vault cover only, see MID 1002001.
- Orient the vault base section so the pump sump is located below the hatch cover.
- Section weights are approximate.
