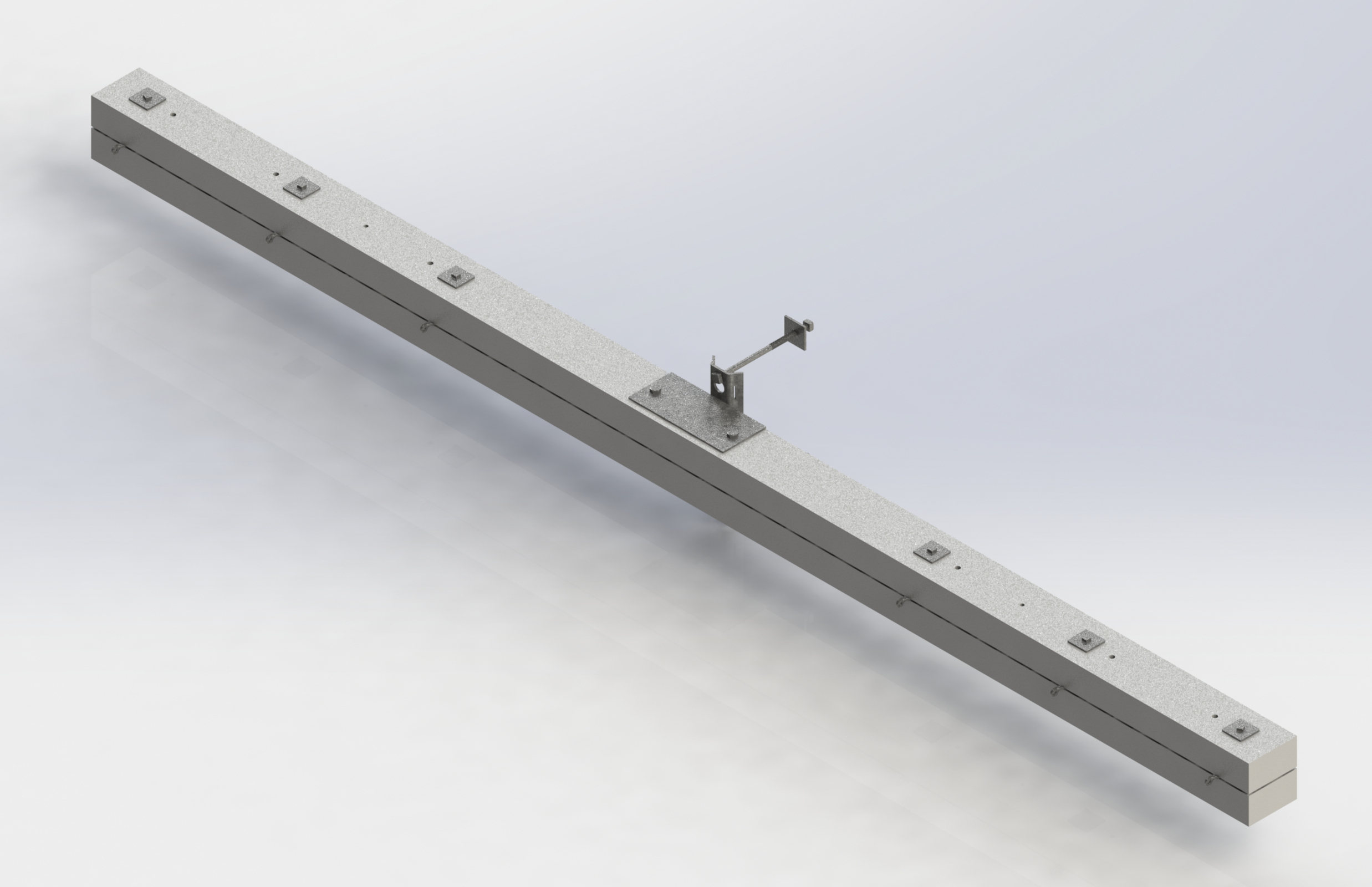

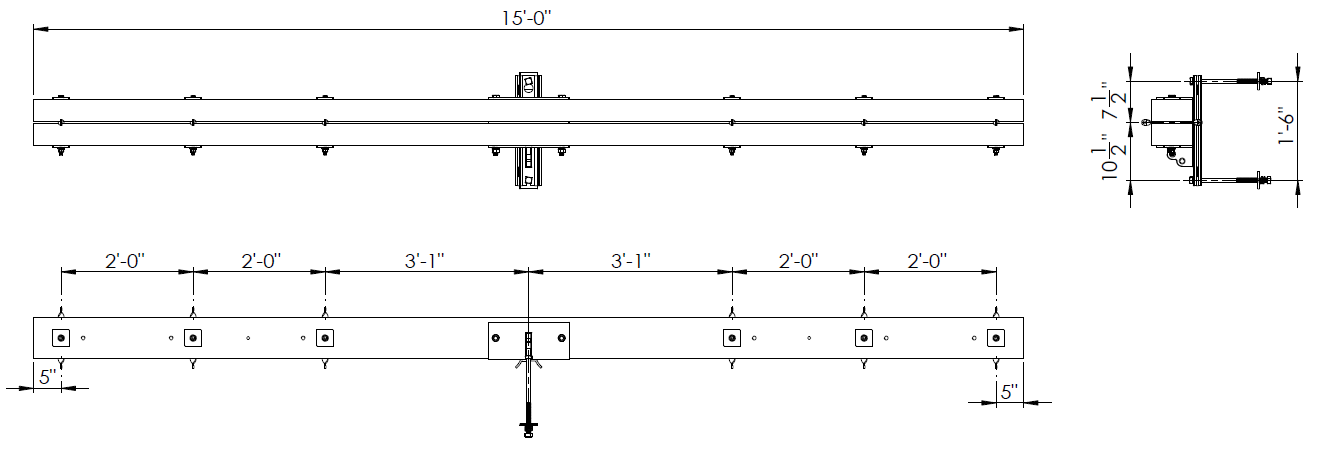

X0214 - 15' Heavy Duty 6-Position Fiberglass Deadend Crossarm

Revision 0
Jun 1, 2009



Compatible Unit Item Description Qty MID
X0214 A Bolt, Machine 3/4” 2 123---
  B Washer, Galv Sq 3” Flat 13/16” Hole 2 910275
  C Washer, Galv Double Coil Spring Lock 3/4” 2 1001445
  D Crossarm, Fiberglass 15’ 6-Pos Medium-Duty DE 1 1002157

Notes:

  1. This crossarm will typically be used to deadend double circuit 795 kcmil AAC on steel poles up to 44" in diameter. 15" minimum separation must be maintained between inside phases and the pole surface. Refer to T&D Guideline 4-20-20.0 for more information.
  2. Bolt length will vary with pole diameter and must be ordered separately. Refer to Compatible Unit R0600 - R0668 for available lengths of 3/4" machine bolts.
  3. Refer to T&D Guideline 4-23-8.0 for more information on steel pole distribution framing.
