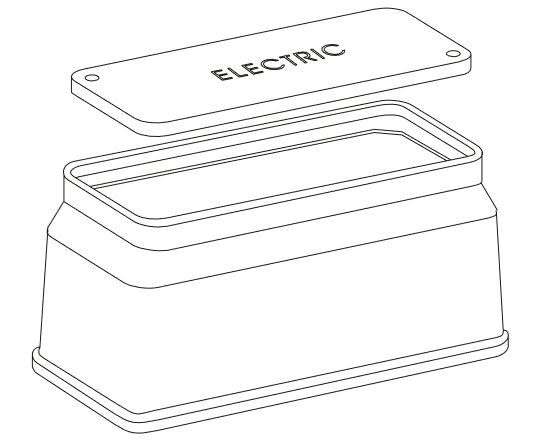

V0101-4 - Secondary Rectangular Handholes
Revision 4
Mar 13, 2025
| C.U. | Description | Load Rating | Qty | MID |
|---|---|---|---|---|
| V0101 | Handhole, Sec Small 13"W x 24"L x 15"H | Incidental Non-Vehicular Traffic | 1 | 776015 |
| V0102 | Handhole, Sec Large 17"W x 30"L x 18"H | Incidental Non-Vehicular Traffic | 1 | 776031 |
| V0103 | Handhole, Sec Small 13"W x 24"L x 18"H Polymer Concrete | Occasional Heavy Vehicle Traffic (See Note 2) |
1 | 1000086 |
| V0104 | Handhole, Sec X-Large 24"W x 36"L x 18"H Polymer Concrete | Occasional Heavy Vehicle Traffic (See Note 2) |
1 | 775992 |
Notes:
- The number and size of cables installed in handholes shall be limited as follows:
Handhole Size Maximum Number of Size of Cables 13"W x 24"L x 15"H 1 Set 350-4/0 & 2 Sets 4/0-2/0 Triplex 17"W x 30"L x 18"H 2 Sets 350-4/0 & 2 Sets 4/0-2/0 Triplex 13"W x 24"L x 18"H 1 Set 350-4/0 & 2 Sets 4/0-2/0 Triplex 24"W x 36"L x 18"H 4 Sets 350-4/0 Triplex
For other cable combinations contact Engineering Standards. - V0103 and V0104 are suitable for driveways, parking lots, and off roadway applications where subject to occasional non-deliberate heavy vehicles (15,000 lbs design load over a 10 sq inch area). If full traffic H-20 loading is required, refer to Compatible Unit V0203.
