R1401 - Heavy Duty Pole Top Bracket for 115kV Vertical Post Insulator
Revision 5
Aug 10, 2016

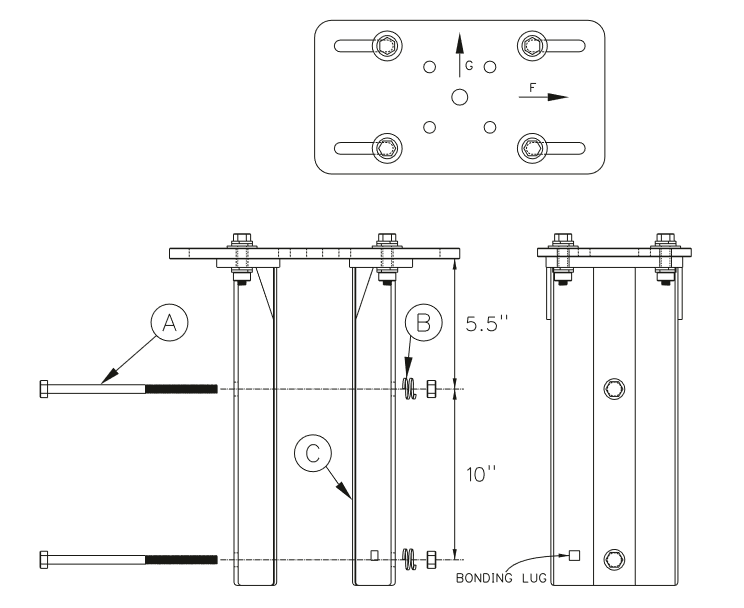

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1401 | A | Bolt, Machine 3/4" x 16" | 2 | 124602 |
| B | Washer, Galv Double Coil Spring Lock, 3/4" | 2 | 1001445 | |
| C | Bracket, Pole Top 115kV | 1 | 876906 |
Note:
- Bracket to be used with 115kV vertical post insulator Compatible Unit I0703.
| Insulator Length | Yield Load* | Pole Size | Insulator Mounting | |
|---|---|---|---|---|
| F | G | |||
| 45" | 2800 | 2000 | 7.5” - 11” | Single 15/16” Dia. Hole |
| 60" | 2200 | 1650 | 7.5” - 11” | Four 11/16” Holes, 5” Bolt Circle |
